Vehicle Info NeededCOMP CAMSPART NUMBER: 249-68-231-4

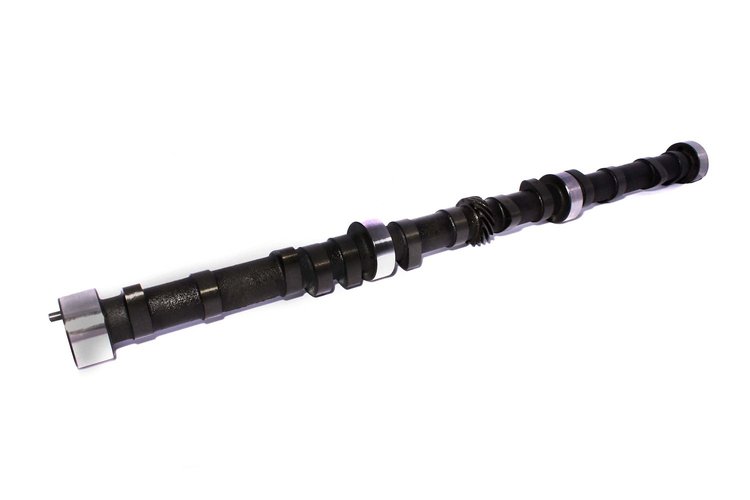

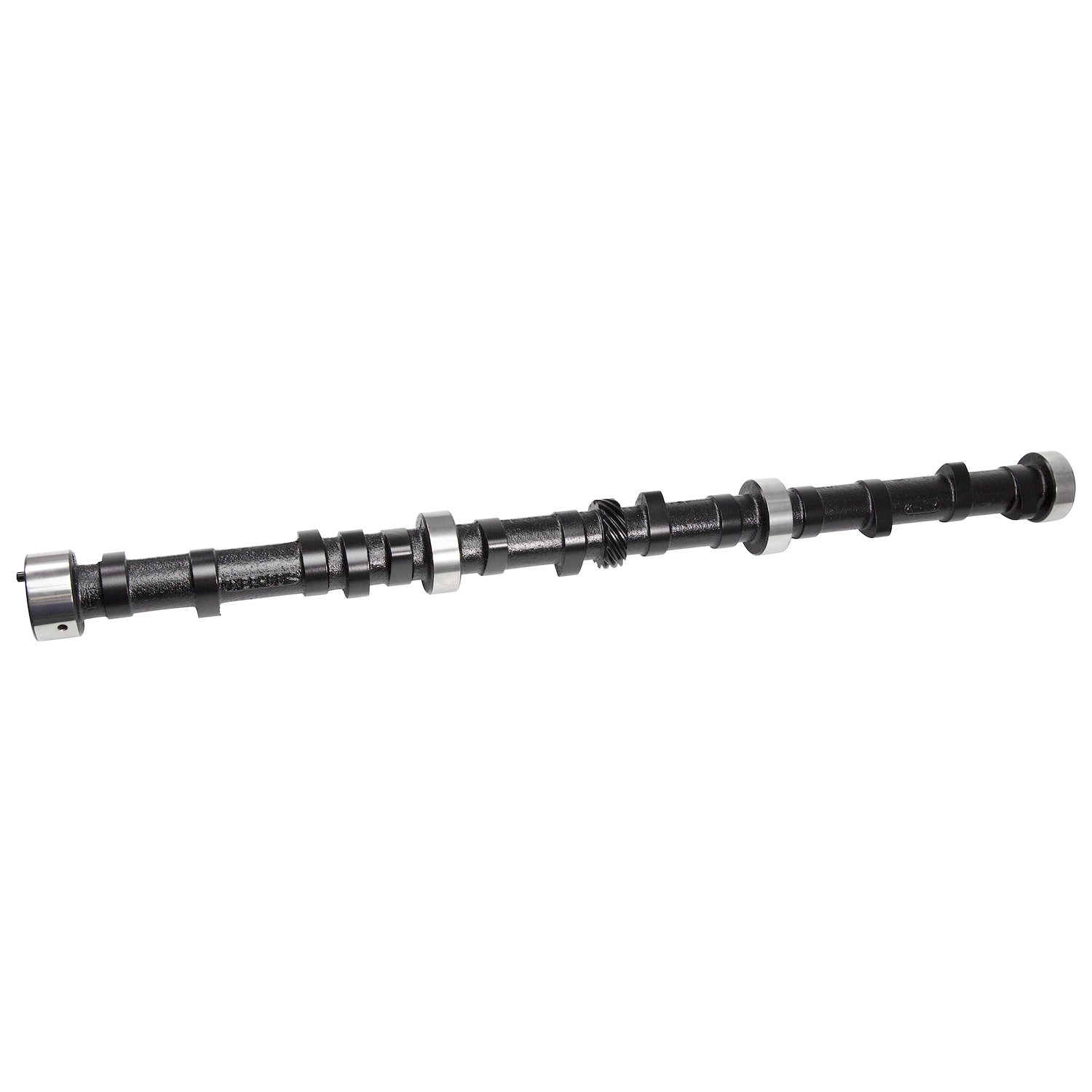

'Xtreme 4x4' Hydraulic Flat Tappet Camshaft
$30995
Ships Tomorrow
Lowest Price GuaranteeAMC 199-258ci, 4.0L 6cyl 1964-97
- Xtreme 4x4 X4250H Hydraulic Flat Tappet Camshaft
Lift: .462''/.485''
Duration: 250°/258°
Lobe Separation Angle: 111°
RPM Range: 800-5000
Not for Fuel Injection
Excellent torque and throttle response, great stock replacement cam.
| Operating Range: | 800-5600 RPM |
| Duration Advertised: | 250° Intake / 258° Exhaust |
| Duration @ .050' Lift: | 206° Intake / 214° Exhaust |
| Valve Lift: | .462' Intake / .485' Exhaust |
| Lobe Separation Angle: | 111° |
AMC; Jeep; 4.0; 199; 258; 232; 242; XJ; Cherokee; Wagoneer; Comanche; Grand Wagoneer; Wrangler; JK; Rambler; Eagle; ZJ; Chrysler; AM General; American Motors
Excellent torque and throttle response, great stock replacement cam.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.75
Package Width2.87
Package Length31.0
Weight12.05 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)214
Cam StyleHydraulic flat tappet
Grind NumberA6 X4 250H-11
Exh. Duration Advertised (Deg)258
Engine Make/SizeAMC 199-258
Intake Valve Lift With Factory Rocker Arm Ratio (I0.462
Int. Duration @ .050 In. (Deg)206
Basic Operating Rpm Range800-5,000
Intake Valve Lift0.462 in (11.735 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)250
Lobe Separation (Deg)111
Rpm Range800-5000
Advertised Duration250 int./258 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.485
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.462 int./0.485 exh.
QuantitySold individually
Exhaust Valve Lift0.485 in (12.319 mm)
Advertised Intake Duration250
Intake Duration At 050 Inch Lift206
Exhaust Duration At 050 Inch Lift214
Advertised Exhaust Duration258
Lifter TypeHydraulic Flat Tappet
Part FitmentSemi Universal
Duration At 050 Inch Lift206 int./214 exh.
Valve Springs RequiredYes
Vendor Part Number68-231-4
Package Qty1
Package TypeEA
No Questions
No Reviews
