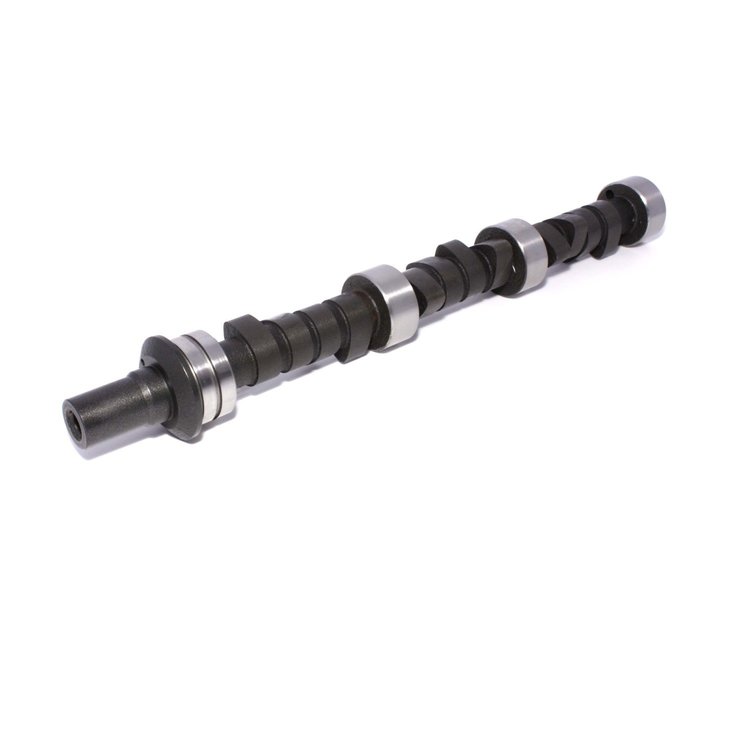

High Energy 247H Hydraulic Flat Tappet Camshaft Lift: .400" /.400" Duration: 247°/247° RPM Range: 800-4800

Name: High Energy 247H Hydraulic Flat Tappet Camshaft Lift: .400" /.400" Duration: 247°/247° RPM Range: 800-4800
Brand: COMP CAMS
SKU: 249-70-115-6
Price: 435.95 USD
Availability: InStock

^$435⁹⁵

Ships on Sep 04, 2026

Lowest Price Guarantee

Ford 2000-2300 OHC 4-cyl. 1971-1991

High Energy 247H Hydraulic Flat Tappet Camshaft
Lift: .400''/.400"
Duration: 247°/247°
RPM Range: 800-4800

High Torque Cams
For Street Applications w/Lower Compression Ratios
Can Be Used w/Most Stock Components
1 Year Limited Warranty
Ford 2000; Ford 2300; Ford 4 Cylinder

Excellent torque and good mileage. Perfect cam for OEM replacement.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeCamshaft
BrandCOMP CAMS
Package Height2.8
Package Width3.2
Package Length24.3
Weight7.23 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)201
Cam StyleHydraulic flat tappet
Grind Number240H
Exh. Duration Advertised (Deg)247
Engine Make/SizeFord 2.0L
Intake Valve Lift With Factory Rocker Arm Ratio (I0.4
Int. Duration @ .050 In. (Deg)201
Basic Operating Rpm Range800-4,800
Intake Valve Lift0.4 in (10.16 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)247
Lobe Separation (Deg)110
Rpm Range800-4800
Advertised Duration247 int./247 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.4
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.400 int./0.400 exh.
QuantitySold individually
Exhaust Valve Lift0.4 in (10.16 mm)
Advertised Intake Duration247
Intake Duration At 050 Inch Lift201
Exhaust Duration At 050 Inch Lift201
Advertised Exhaust Duration247
Lifter TypeHydraulic Flat Tappet
Part FitmentSemi Universal
Duration At 050 Inch Lift201 int./201 exh.
Valve Springs RequiredYes
Vendor Part Number70-115-6
Package Qty1
Package TypeEA
