Vehicle Info NeededCOMP CAMSPART NUMBER: 249-70-202-6

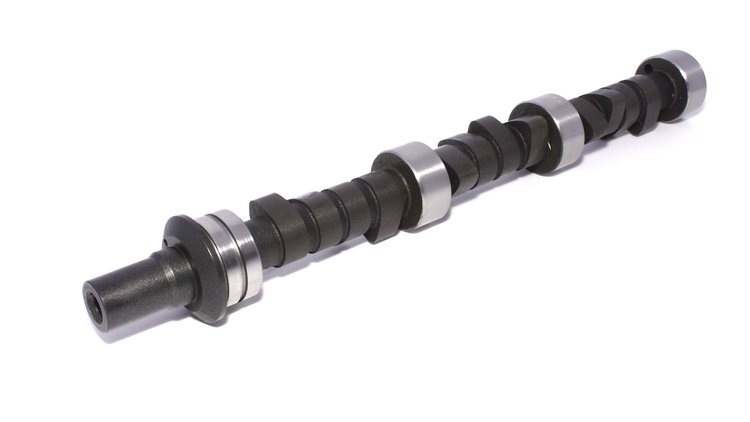

Comp Cams F23 294S-12
$43595
Ships on 10/15/2026
Lowest Price GuaranteeFord 2000-2300 OHC 4 CYL. 1971-1991
- Oval Track Mechanical Flat Tappet Camshaft
- Oval Track Camshaft
- 1 Year Limited Warranty
Ford 2000; Ford 2300; Ford 4 Cylinder
Aftermarket intake and headers needed. 500 CFM carb., 11:1+ compression.
Ford 2000-2300 OHC 4 CYL. 1971-1991
Lift: .503"/.503"
Duration: 300°/300°
Lobe Separation Angle: 112°
RPM Range: 3500-7400
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.8
Package Width3.0
Package Length24.4
Weight6.9 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)250
Cam StyleMechanical flat tappet
Grind Number294S
Exh. Duration Advertised (Deg)294
Engine Make/SizeFord 2.3L
Intake Valve Lift With Factory Rocker Arm Ratio (I0.503
Int. Duration @ .050 In. (Deg)250
Basic Operating Rpm Range3,500-7,400
Intake Valve Lash0.01 in (0.254 mm)
Intake Valve Lift0.463 in (11.76 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)294
Lobe Separation (Deg)112
Rpm Range3500-7400
Advertised Duration300 int./300 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.503
UsageStrip
Valve Lift With Factory Rocker Arm Ratio0.503 int./0.503 exh.
QuantitySold individually
Exhaust Valve Lash0.01 in (0.254 mm)
Exhaust Valve Lift0.463 in (11.76 mm)
Advertised Intake Duration300
Intake Duration At 050 Inch Lift270
Exhaust Duration At 050 Inch Lift270
Advertised Exhaust Duration300
Lifter TypeMechanical Flat Tappet
Part FitmentSemi Universal
Duration At 050 Inch Lift270 int./270 exh.
Valve Springs RequiredNo
Vendor Part Number70-202-6
Package Qty1
Package TypeEA
