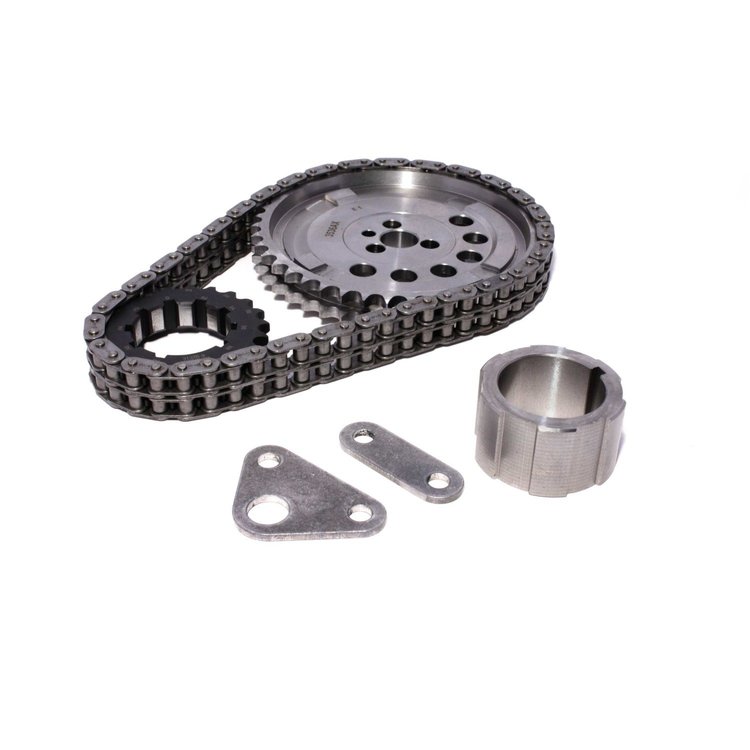

Keyway Adjustable Billet Timing Set GM LS Series
InfoVehicle Info Needed
COMP CAMSPART NUMBER: 249-7106

Keyway Adjustable Billet Timing Set GM LS Series

$18295
2 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

Keyway Adjustable Billet Timing Sets
  • GM LS Series
    • Keyway Adjustable Billet Timing Set
    • GM LS Series
    • With 58 Tooth Reluctor
    • Three Bolt Camshaft

      GM, 4.8, 5.3, 5.7, 6.0, 6.2, 7.0, LS1, LS2, LS3, LS4, LS6, LS7, LSA, LS9, Camaro, Silverado, LS Swap, 383, 350, SBC, Chevelle, Yukon, L92, LM7, 325, GMC, Trailblazer, Corvette, GM LS, GEN III, GEN 3, GEN IV, GEN 4, DOD, AFM, VVT, BTR, Texas Speed


      With precision machined steel billet gears, our keyway timing set for Chevrolet 58x, 3-bolt, 4-pole LS3 is built with bullet-proof durability. Features 9 keyway crank sprocket for 2 degree adjustment increments and double roller chain.

      Adjustable Street Performance and Racing Timing Sets

      Comp Cams Keyway Adjustable Billet Timing Sets are ideal for all street performance and race applications. A 9 Keyway sprocket allows two degrees of incremental adjustability for a total of eight degrees of advance or retard. A Torrington roller thrust bearing is utilized for reduced friction and billet steel gears are induction hardened. A pre-stretched, heat-treated double roller chain with a heavy-duty large pin design ensures the ultimate reliability and accuracy.

    Part TypeTiming Chain and Gear Set
    Product LineComp Cams Keyway Adjustable Billet Timing Sets
    BrandCOMP CAMS
    Package Height1.4
    Package Width6.75
    Package Length9.9
    Weight3.9 PG
    Part CategoryPerformance Parts
    Gaskets IncludedNo
    Thrust Bearing IncludedYes
    Crank Sprocket MaterialBillet steel
    Offset Bushings IncludedNo
    Timing Chain StyleDouble roller
    Maximum Advance/Retard At Crankshaft8 degree
    QuantitySold as a kit
    Cam Sprocket MaterialBillet steel
    Maximum Advance/Retard At Camshaft4 degree
    Bolts/Studs IncludedNo
    Engine Make/SizeChevy LS2
    Vendor Part Number7106CPG
    Package Qty1
    Package TypeEA
