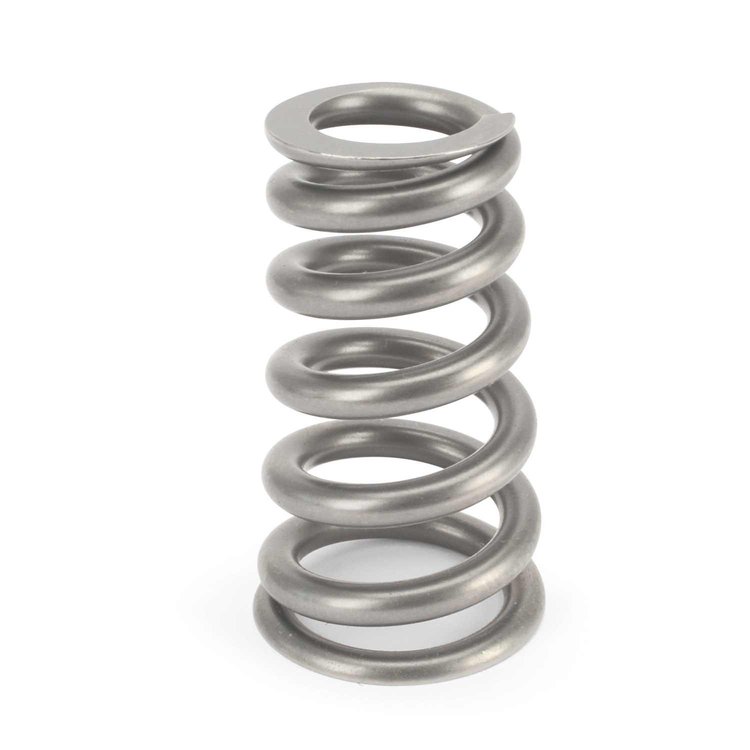

Conical Valve Springs
- Conical Valve Springs
- Rate: 438 lbs
- Inner Diameter: .650'' Top, .920'' Bottom
- Outer Diameter: 1.020'' Top, 1.290'' Bottom
- Seat Load: 136 lbs at 1.800''
- Open Load: 412 lbs at 1.170''
- Coil Bind Height: 1.125''
- 1/pkg
- Reduced Mass Improves RPM Stability
- Conical Design Offers Best Natural Frequency Damping
- Dampens w/o Wear/Heat/Friction Or Risk From Interference Contact
- Progressive Frequency Increases RPM Limit
- Allows For More Aggressive Cams
- Superfinish Surface Processing Increases Max Lift Capability
- Longer Valve Train Component Lift
- Less Parasitic Horsepower Loss
Valve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit
Part TypeValve Spring
BrandCOMP CAMS
Package Height1.5
Package Width4.0
Package Length6.0
Weight0.22 PG
Part CategoryPerformance Parts
Coil Bind Height1.125 in (28.575 mm)
Spring TypeSingle
Spring Rate (Lbs./In.)438
Part FitmentSemi Universal
Outside DiameterOEM
Camshaft TypeN/A
Vendor Part Number7228-1
Package Qty1
Package TypeEA
