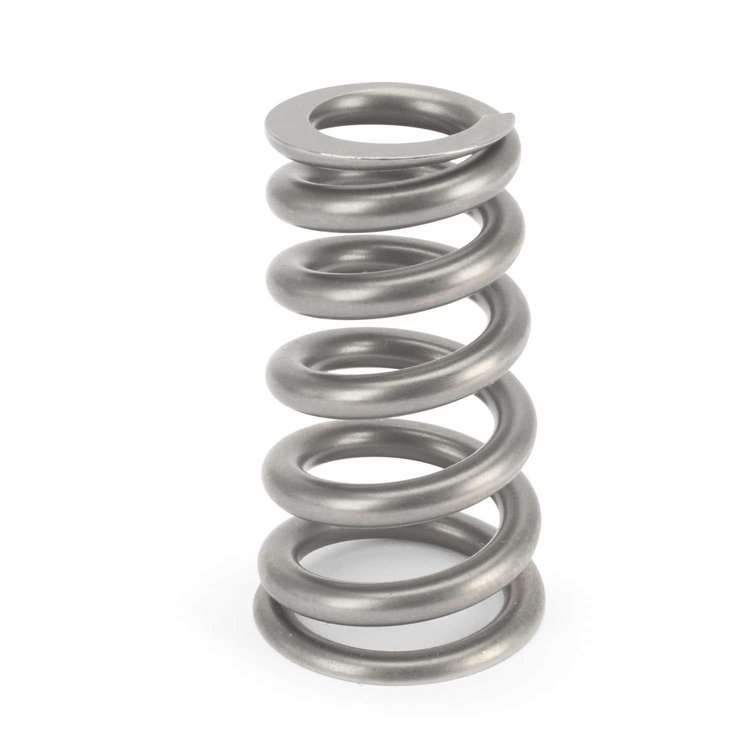

CONICAL VALVESPRING .660/.932

Name: CONICAL VALVESPRING .660/.932
Brand: COMP CAMS
SKU: 249-7230-1
Price: 38.95 USD
Availability: InStock

^$38⁹⁵

Ships on 09/04/2026

Lowest Price Guarantee

Conical Valve Springs

Rate: 520 lbs
Inner Diameter: .660'' Top, .932'' Bottom
Outer Diameter: 1.060'' Top, 1.332'' Bottom
Seat Load: 145 lbs at 1.900''
Open Load: 495 lbs at 1.225''
Coil Bind Height: 1.185''
1/pkg
Reduced Mass Improves RPM Stability
Conical Design Offers Best Natural Frequency Damping
Dampens w/o Wear/Heat/Friction Or Risk From Interference Contact
Progressive Frequency Increases RPM Limit
Allows For More Aggressive Cams
Superfinish Surface Processing Increases Max Lift Capability
Longer Valve Train Component Lift
Less Parasitic Horsepower Loss
Valve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit

Part TypeValve Spring

BrandCOMP CAMS

Package Height1.5

Package Width1.5

Package Length2.5

Weight0.165 PG

Part CategoryPerformance Parts

Spring TypeSingle

Spring Rate (Lbs./In.)520

Part FitmentSemi Universal

Camshaft TypeN/A

Vendor Part Number7230-1

Package Qty1

Package TypeEA
