Lowest Price GuaranteeNissan 2400-2800cc 6 cyl. 1970-1984

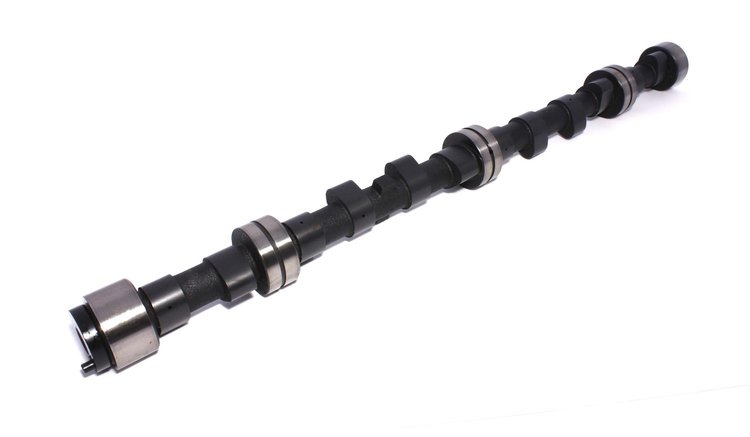

- Magnum 280S Mechanical Flat Tappet Camshaft
Lift:.460"/.460"
Duration:280°/280°
Lobe Separation Angle:110°
RPM Range:2000-6000
Serious street use or mild road Racing. Strong mid-range with good top end.
| Operating Range: | 2000-6000 RPM |
| Duration Advertised: | 280° Intake / 280° Exhaust |
| Duration @ .050' Lift: | 236° Intake / 236° Exhaust |
| Valve Lift: | .460' Intake / .460' Exhaust |
| Lobe Separation Angle: | 110° |
Nissan; 2400; 2800
Serious street use or mild road racing. Strong mid-range with good top end.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.75
Package Width2.75
Package Length31.0
Weight9.44 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)236
Cam StyleMechanical flat tappet
Grind Number280S
Exh. Duration Advertised (Deg)280
Engine Make/SizeNissan 2.4L-2.8L
Intake Valve Lift With Factory Rocker Arm Ratio (I0.46
Int. Duration @ .050 In. (Deg)236
Basic Operating Rpm Range2,000-6,000
Intake Valve Lash0.012 in (0.305 mm)
Intake Valve Lift0.46 in (11.684 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)280
Lobe Separation (Deg)110
Rpm Range2000-6000
Advertised Duration280 int./280 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.46
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.460 int./0.460 exh.
QuantitySold individually
Exhaust Valve Lash0.012 in (0.305 mm)
Exhaust Valve Lift0.46 in (11.684 mm)
Advertised Intake Duration280
Intake Duration At 050 Inch Lift236
Exhaust Duration At 050 Inch Lift236
Advertised Exhaust Duration280
Lifter TypeSolid Flat Tappet
Part FitmentSemi Universal
Duration At 050 Inch Lift236 int./236 exh.
Valve Springs RequiredYes
Vendor Part Number84-131-6
Package Qty1
Package TypeEA
