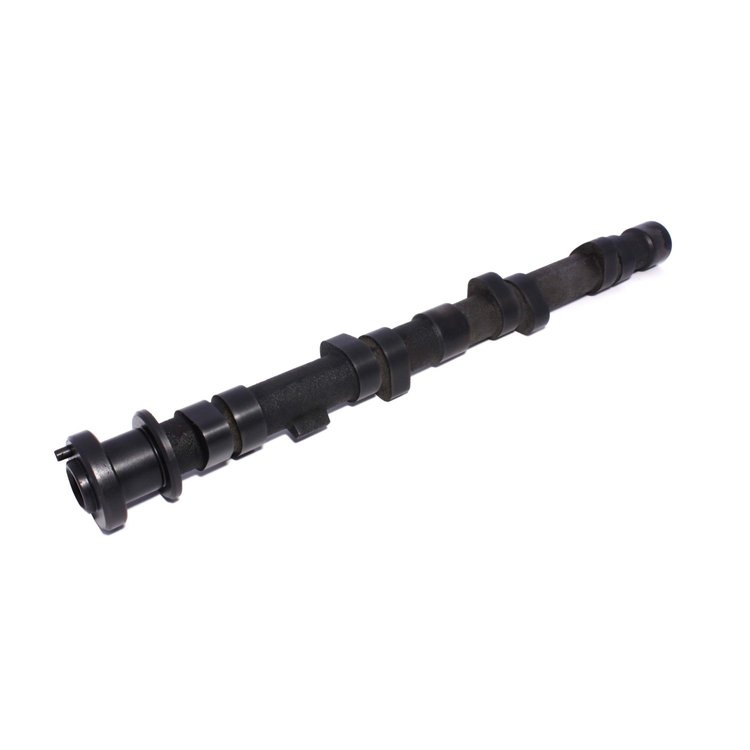

High Energy Solid Camshaft Dur. 255 Int./Exh Lift .420 Int./Exh RPM Range 800-4500

Vehicle Info Needed

COMP CAMSPART NUMBER: 249-87-119-6

High Energy Solid Camshaft Dur. 255 Int./Exh Lift .420 Int./Exh RPM Range 800-4500

Name: High Energy Solid Camshaft Dur. 255 Int./Exh Lift .420 Int./Exh RPM Range 800-4500
Brand: COMP CAMS
SKU: 249-87-119-6
Price: 410.95 USD
Availability: InStock

^$410⁹⁵

Ships on Sep 04, 2026

Lowest Price Guarantee

Toyota 20R, 22R 4 CYL. 1974-89

Dur.

Lift

RPM Range

Operating Range:	800-4500 RPM
Duration Advertised:	255° Intake / 255° Exhaust
Duration @ .050' Lift:	214° Intake / 214° Exhaust
Valve Lift:	.420' Intake / .420' Exhaust
Lobe Separation Angle:	110°

Toyota; 20R; 22R

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeCamshaft

BrandCOMP CAMS

Package Height2.75

Package Width3.0

Package Length24.5

Weight6.62 PG

Part CategoryPerformance Parts

Exh. Duration @ .050 In. (Deg)214

Cam StyleMechanical flat tappet

Grind Number252S

Exh. Duration Advertised (Deg)255

Engine Make/SizeToyota 2.2L

Intake Valve Lift With Factory Rocker Arm Ratio (I0.41

Int. Duration @ .050 In. (Deg)214

Basic Operating Rpm Range800-4,500

Intake Valve Lift0.42 in (10.668 mm)

Computer-Controlled CompatibleNo

Int. Duration Advertised (Deg)255

Lobe Separation (Deg)110

Rpm Range800-4500

Advertised Duration252 int./252 exh.

Exhaust Valve Lift With Factory Rocker Arm Ratio (0.41

UsageStreet/Performance

Valve Lift With Factory Rocker Arm Ratio0.410 int./0.410 exh.

QuantitySold individually

Exhaust Valve Lift0.42 in (10.668 mm)

Advertised Intake Duration252

Intake Duration At 050 Inch Lift204

Exhaust Duration At 050 Inch Lift204

Advertised Exhaust Duration252

Lifter TypeSolid Flat Tappet

Duration At 050 Inch Lift204 int./204 exh.

Valve Springs RequiredYes

Vendor Part Number87-119-6

Package Qty1

Package TypeEA
