Vehicle Info NeededCOMP CAMSPART NUMBER: 249-87-127-6

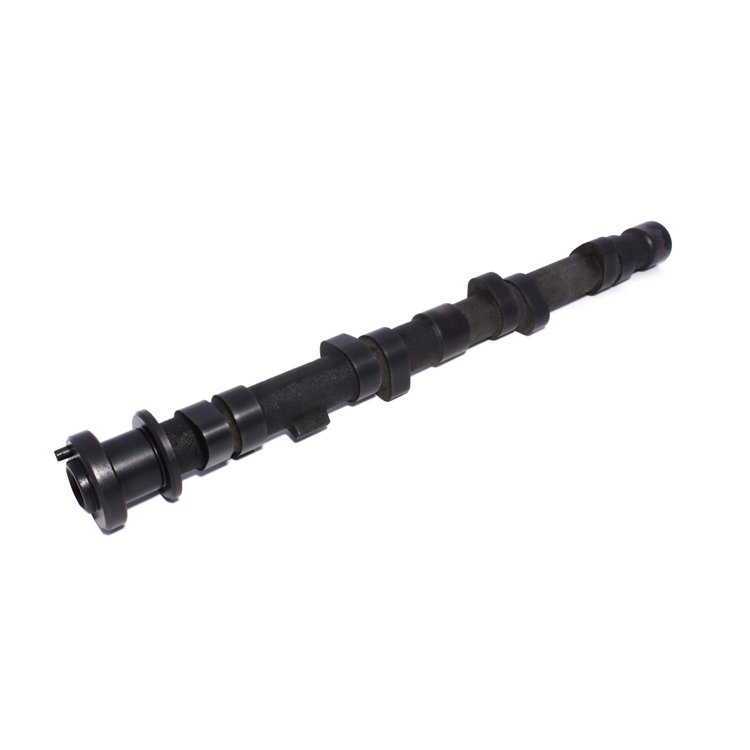

High Energy Solid Camshaft Dur. 271 Int./Exh Lift .445 Int./Exh RPM Range 1500-5500
$41095
Ships on Sep 03, 2026
Lowest Price GuaranteeToyota 20R, 22R 4 CYL. 1974-89
- High Energy Solid Camshaft
Dur. 271 Int./Exh
Lift .445 Int./Exh
RPM Range 1500-5500
Performance use. Wide powerband. Smooth idle.
| Operating Range: | 1500-5500 RPM |
| Duration Advertised: | 271° Intake / 271° Exhaust |
| Duration @ .050' Lift: | 230° Intake / 230° Exhaust |
| Valve Lift: | .445' Intake / .445' Exhaust |
| Lobe Separation Angle: | 110° |
Toyota; 20R; 22R
Performance use. Wide powerband. Smooth idle.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.9
Package Width3.0
Package Length24.3
Weight6.95 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)230
Cam StyleMechanical flat tappet
Grind NumberT20 268S
Exh. Duration Advertised (Deg)271
Engine Make/SizeToyota 2.2L
Intake Valve Lift With Factory Rocker Arm Ratio (I0.435
Int. Duration @ .050 In. (Deg)230
Basic Operating Rpm Range1,500-5,500
Intake Valve Lift0.445 in (11.303 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)271
Lobe Separation (Deg)110
Rpm Range1500-5500
Advertised Duration268 int./268 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.435
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.435 int./0.435 exh.
QuantitySold individually
Exhaust Valve Lift0.445 in (11.303 mm)
Advertised Intake Duration268
Intake Duration At 050 Inch Lift224
Exhaust Duration At 050 Inch Lift224
Advertised Exhaust Duration268
Lifter TypeSolid Flat Tappet
Duration At 050 Inch Lift224 int./224 exh.
Valve Springs RequiredYes
Vendor Part Number87-127-6
Package Qty1
Package TypeEA
