Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

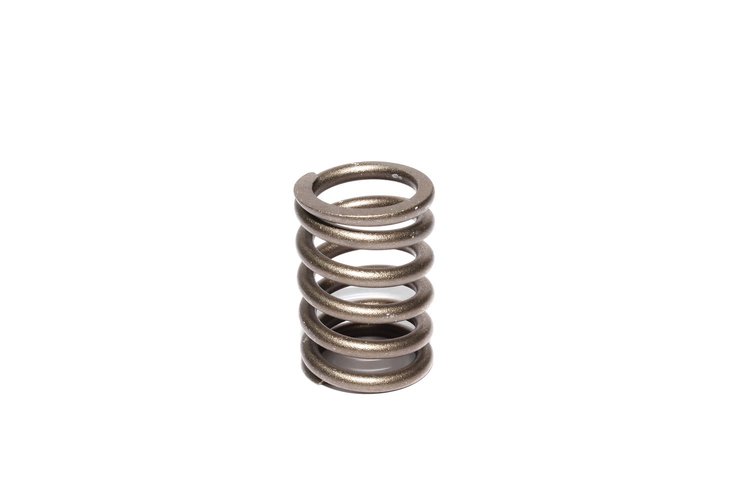

Outer
- Single Outer Valve Spring
- Rate: 219 lbs
- 1.011'' ID, 1.355'' OD
- Seat Load: 61 lbs at 1.600''
- Open Load: 137 lbs at 1.250''
- Coil Bind Height: 1.054''
- No Damper
- 1/pkg
Valve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit
- Comp Cams Valve Springs are tested under stresses much greater than normal to ensure consistency. Isolating an engine's purpose is first when selecting proper springs. Verify load capacity for optimal performance.
Part TypeValve Spring
Product LineComp Cams Single Valve Springs
BrandCOMP CAMS
Package Height1.5
Package Width1.7
Package Length2.2
Weight0.13 PG
Part CategoryPerformance Parts
CoatedNo
Coil Bind Height1 in (25.4 mm)
Damper Spring IncludedNo
Spring Rate219 lbs./in.
PositionOuter
Open Height1.25 in (31.8 mm)
Open Pressure (Lbs.)137
Installed Pressure (Lbs.)61
QuantitySold individually
Installed Height1.6 in (40.64 mm)
Valve Spring StyleStandard
Outside Diameter Of Outer Spring1.355 in (34.4 mm)
Inside Diameter Of Outer Spring1.011 in (25.679 mm)
Inside Diameter1.015 in (25.781 mm)
Spring TypeSingle
Spring Rate (Lbs./In.)217
Outside Diameter1.355 in (34.4 mm)
Number Of Springs Per ValveSingle
Camshaft TypeHydraulic
Vendor Part Number906-1
Package Qty1
Package TypeEA
