Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Outer

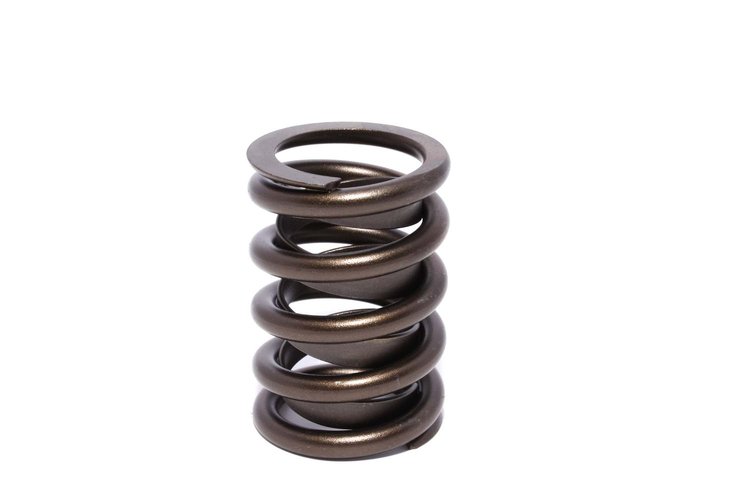

- Single Outer Valve Spring
- Rate: 251 lbs
- 1.125'' ID, 1.509'' OD
- Seat Load: 137 lbs at 1.750''
- Open Load: 262 lbs at 1.250''
- Coil Bind Height: 1.175''
- With Damper
- 1/pkg
Valve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit
Engine Valve Spring
Part TypeValve Spring
BrandCOMP CAMS
Package Height2.0
Package Width2.0
Package Length4.0
Weight0.5 PG
Part CategoryPerformance Parts
CoatedNo
Coil Bind Height1.11 in (28.194 mm)
Damper Spring IncludedYes
Spring Rate251 lbs./in.
PositionOuter
Open Height1.25 in (31.8 mm)
Open Pressure (Lbs.)262
Installed Pressure (Lbs.)137
QuantitySold individually
Installed Height1.75 in (44.45 mm)
Valve Spring StyleStandard
Outside Diameter Of Outer Spring1.509 in (38.3 mm)
Inside Diameter Of Outer Spring1.125 in (28.575 mm)
Inside Diameter1.025 in (26.035 mm)
Spring TypeSingle
Spring Rate (Lbs./In.)251
Part FitmentSemi Universal
Outside Diameter1.51 in (38.4 mm)
Number Of Springs Per ValveSingle
Camshaft TypeHydraulic
Vendor Part Number920-1
Package Qty1
Package TypeEA
