Product Discontinued

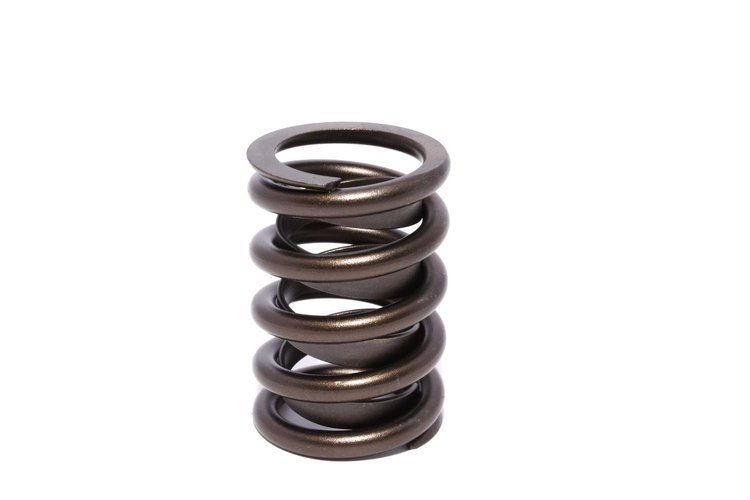

COMP CAMSPART NUMBER: 249-926-1

Single Outer Valve Spring Rate: 415 lbs

Name: Single Outer Valve Spring Rate: 415 lbs
Brand: COMP CAMS
SKU: 249-926-1
Price: 12.95 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Outer

Rate: 415 lbs
1.062'' ID, 1.476'' OD
Seat Load: 109 lbs at 1.800''
Open Load: 317 lbs at 1.300''
Coil Bind Height: 1.140''
With Damper
1/pkg

Valve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit

Engine Valve Spring

Part TypeValve Spring

BrandCOMP CAMS

Package Height1.5

Package Width4.0

Package Length6.0

Weight0.3 PG

Part CategoryPerformance Parts

CoatedNo

Coil Bind Height1.14 in (28.956 mm)

Damper Spring IncludedYes

Spring Rate415 lbs./in.

PositionOuter

Open Height1.3 in (33 mm)

Open Pressure (Lbs.)317

Installed Pressure (Lbs.)108

QuantitySold individually

Installed Height1.8 in (45.72 mm)

Valve Spring StyleStandard

Outside Diameter Of Outer Spring1.476 in (37.5 mm)

Inside Diameter Of Outer Spring1.062 in (26.975 mm)

Inside Diameter1.062 in (26.975 mm)

Spring TypeSingle

Spring Rate (Lbs./In.)418

Part FitmentSemi Universal

Outside Diameter1.475 in (37.5 mm)

Number Of Springs Per ValveSingle

Camshaft TypeHydraulic

Vendor Part Number926-1

Package Qty1

Package TypeEA
