Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

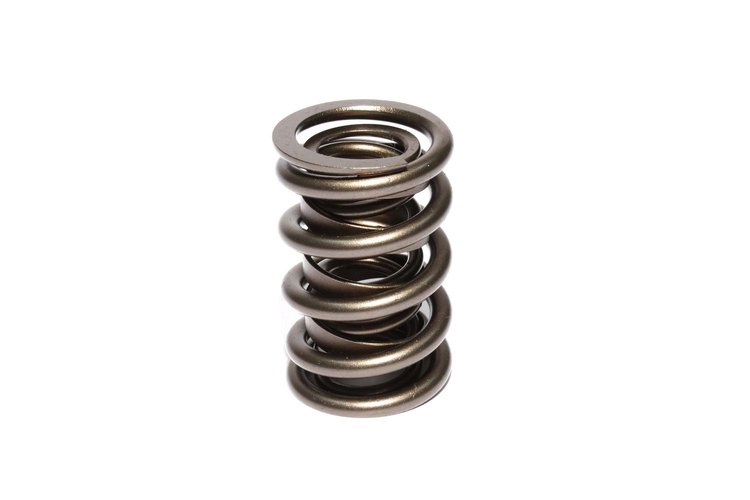

1.550 in. Outside Diameter
- Dual Valve Springs
- Outer Spring O.D.: 1.550 in.
- Outer Spring I.D.: 1.150 in.
- Inner Spring I.D.: 0.795 in.
- Seat Load: 153lbs
- Coil Bind: 1.160 in.
- Spring Rate: 354lbs/in.
- With damper
- Sold Individually
- Dual Valve Spring
- Coiled On the Most Advanced CNC Machines
- 1 Year Limited Warranty
Valve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit
Engine Valve Spring
Part TypeValve Spring
BrandCOMP CAMS
Package Height2.0
Package Width2.2
Package Length3.0
Weight0.3 PG
Part CategoryPerformance Parts
CoatedNo
Coil Bind Height1.16 in (29.464 mm)
Damper Spring IncludedYes
Spring Rate354 lbs./in.
PositionN/A
Open Height1.25 in (31.8 mm)
Open Pressure (Lbs.)371
Installed Pressure (Lbs.)89
QuantitySold individually
Installed Height1.9 in (48.26 mm)
Inside Diameter Of Inner Spring0.795 in (20.193 mm)
Valve Spring StyleStandard
Outside Diameter Of Outer Spring1.55 in (39.4 mm)
Inside Diameter Of Outer Spring1.15 in (29.21 mm)
Inside Diameter0.697 in (17.704 mm)
Spring TypeDouble
Spring Rate (Lbs./In.)352
Outside Diameter1.509 in (38.3 mm)
Number Of Springs Per ValveDual
Camshaft TypeHydraulic
Vendor Part Number930-1
Package Qty1
Package TypeEA
