Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

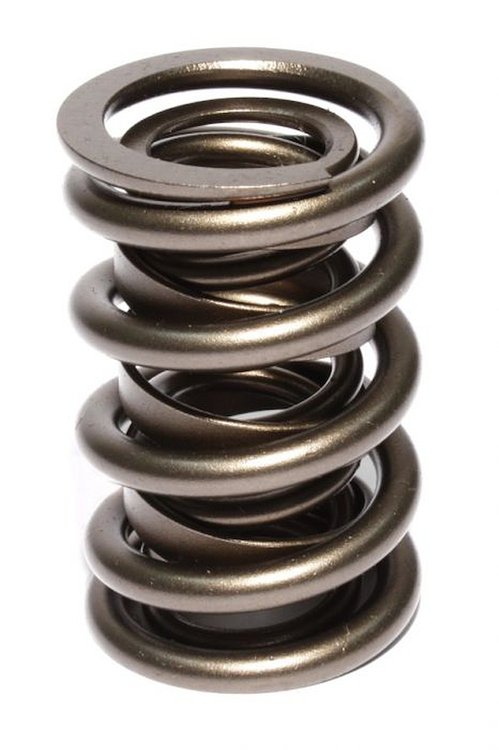

1.554 in. Outside Diameter
- Dual Valve Springs
- Outer Spring O.D.: 1.554 in.
- Outer Spring I.D.: 1.140 in.
- Inner Spring I.D.: 0.746 in.
- Seat Load: 194lbs
- Coil Bind: 1.180 in.
- Spring Rate: 471lbs/in.
- With damper
- Sold Individually
- Hi-Tech Oval Track
- Dyno And Track Testing
- 1 Year Limited Warranty
Valve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit
Part TypeValve Spring
BrandCOMP CAMS
Package Height1.5
Package Width4.0
Package Length6.0
Weight0.21 PG
Part CategoryPerformance Parts
CoatedNo
Coil Bind Height1.18 in (29.972 mm)
Damper Spring IncludedYes
Spring Rate467 lbs./in.
PositionN/A
Open Height1.25 in (31.8 mm)
Open Pressure (Lbs.)524
Installed Pressure (Lbs.)194
QuantitySold individually
Installed Height1.95 in (49.53 mm)
Inside Diameter Of Inner Spring0.746 in (18.948 mm)
Valve Spring StyleStandard
Outside Diameter Of Outer Spring1.554 in (39.5 mm)
Inside Diameter Of Outer Spring1.14 in (28.956 mm)
Inside Diameter0.746 in (18.948 mm)
Spring TypeDouble
Spring Rate (Lbs./In.)471
Part FitmentSemi Universal
Outside Diameter1.554 in (39.5 mm)
Number Of Springs Per ValveDual
Camshaft TypeHydraulic
Vendor Part Number935-1
Package Qty1
Package TypeEA
