Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Inner

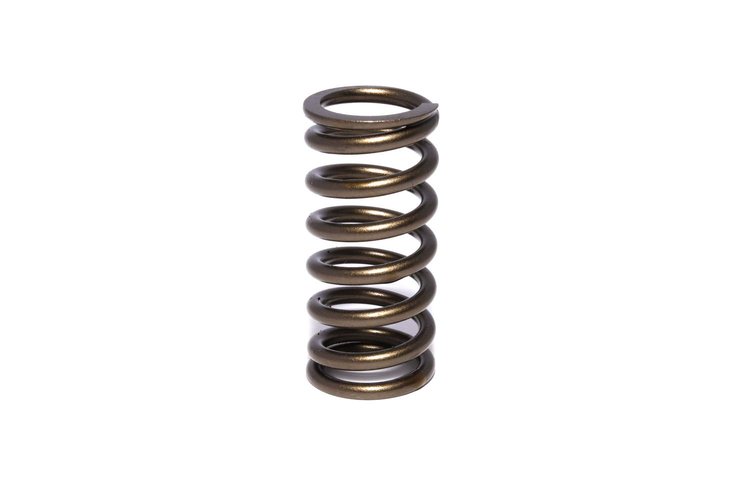

- Single Inner Valve Spring
- Rate: 156 lbs
- .731'' ID, 1.015'' OD
- Seat Load: 54 lbs at 1.800''
- Open Load: 147 lbs at 1.200''
- Coil Bind Height: 1.100''
- 1/pkg
Valve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit
Engine Valve Spring
Part TypeValve Spring
BrandCOMP CAMS
Package Height1.0
Package Width4.0
Package Length6.0
Weight0.33 PG
Part CategoryPerformance Parts
CoatedNo
Coil Bind Height1.1 in (27.94 mm)
Damper Spring IncludedNo
Spring Rate156 lbs./in.
PositionInner
Open Height1.2 in (30.5 mm)
Open Pressure (Lbs.)145
Installed Pressure (Lbs.)52
QuantitySold individually
Installed Height1.8 in (45.72 mm)
Inside Diameter Of Inner Spring0.731 in (18.567 mm)
Valve Spring StyleStandard
Outside Diameter Of Outer Spring1.015 in (25.8 mm)
Inside Diameter0.731 in (18.567 mm)
Spring TypeSingle
Spring Rate (Lbs./In.)156
Part FitmentSemi Universal
Outside Diameter1.015 in (25.8 mm)
Number Of Springs Per ValveSingle (inner spring)
Camshaft TypeHydraulic
Vendor Part Number937-1
Package Qty1
Package TypeEA
