Vehicle Info NeededCOMP CAMSPART NUMBER: 249-94-302-5

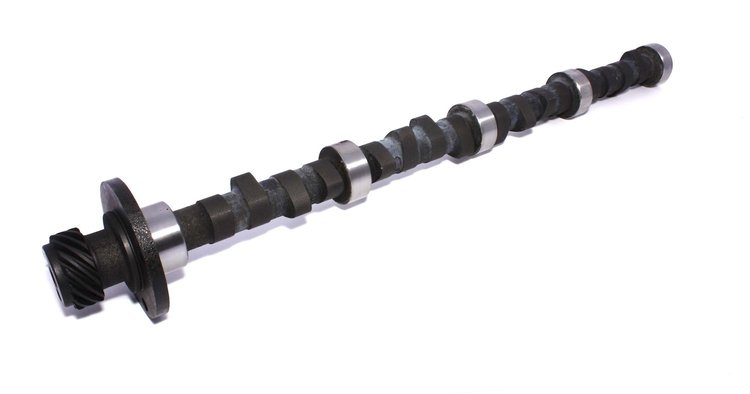

High Energy 260H Hydraulic Flat Tappet Camshaft Lift .481"/.481" Duration 260°/260° RPM Range 1000-5000
$32595
Ships on 09/15/2026
Lowest Price GuaranteeCadillac 425, 472, 500 c.i. 8 Cyl. 1963-1979
- High Energy 260H Hydraulic Flat Tappet Camshaft
- High Torque Cams
- For Street Applications w/Lower Compression Ratios
- Can Be Used w/Most Stock Components
- 1 Year Limited Warranty
Cadillac; 425; 472; 500; Cadillac 500
Strong torque through low and mid-range, smooth idle.
Lift .481"/.481"
Duration 260°/260°
RPM Range 1000-5000
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.75
Package Width2.87
Package Length24.5
Weight9.95 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)212
Cam StyleHydraulic flat tappet
Grind NumberCAD 260H-10
Exh. Duration Advertised (Deg)260
Engine Make/SizeCadillac 472-500
Intake Valve Lift With Factory Rocker Arm Ratio (I0.481
Int. Duration @ .050 In. (Deg)212
Basic Operating Rpm Range1,000-5,000
Intake Valve Lift0.481 in (12.217 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)260
Lobe Separation (Deg)110
Rpm Range1000-5000
Advertised Duration260 int./260 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.481
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.481 int./0.481 exh.
QuantitySold individually
Exhaust Valve Lift0.481 in (12.217 mm)
Advertised Intake Duration260
Intake Duration At 050 Inch Lift212
Exhaust Duration At 050 Inch Lift212
Advertised Exhaust Duration260
Lifter TypeHydraulic Flat Tappet
Part FitmentSemi Universal
Duration At 050 Inch Lift212 int./212 exh.
Valve Springs RequiredYes
Vendor Part Number94-302-5
Package Qty1
Package TypeEA
