Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Outer

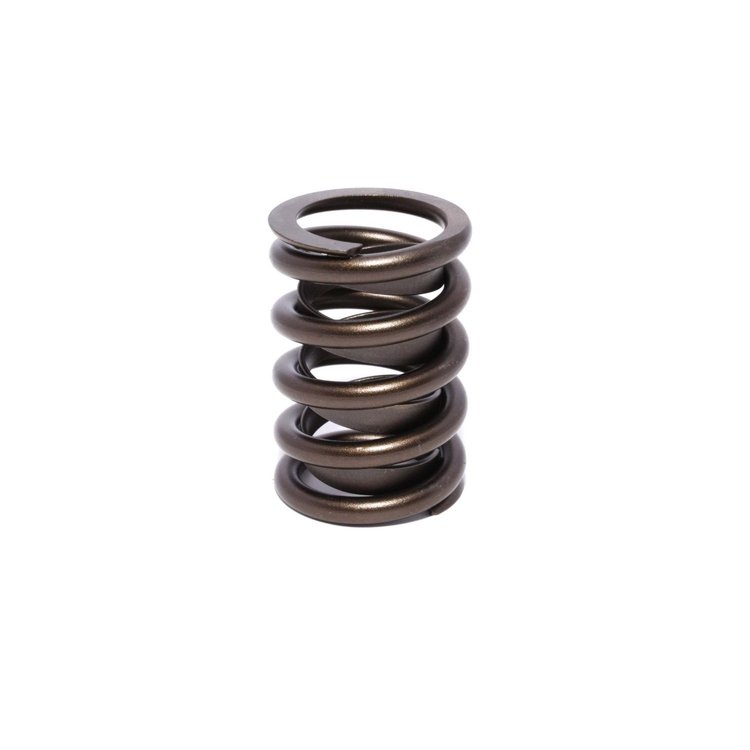

- Single Outer Valve Spring
- Rate: 241 lbs
- 1.070'' ID, 1.464'' OD
- Seat Load: 93 lbs at 1.900''
- Open Load: 237 lbs at 1.300''
- Coil Bind Height: 1.200''
- With Damper
- 1/pkg
Valve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit
Engine Valve Spring
- Comp Cams Valve Springs are tested under stresses much greater than normal to ensure consistency. Isolating an engine's purpose is first when selecting proper springs. Verify load capacity for optimal performance.
Part TypeValve Spring
Product LineComp Cams Single Valve Springs
BrandCOMP CAMS
Package Height1.5
Package Width4.0
Package Length6.0
Weight0.3 PG
Part CategoryPerformance Parts
CoatedNo
Coil Bind Height1.2 in (30.48 mm)
Damper Spring IncludedYes
Spring Rate241 lbs./in.
PositionOuter
Open Height1.3 in (33 mm)
Open Pressure (Lbs.)234
Installed Pressure (Lbs.)89
QuantitySold individually
Installed Height1.9 in (48.26 mm)
Valve Spring StyleStandard
Outside Diameter Of Outer Spring1.464 in (37.2 mm)
Inside Diameter Of Outer Spring1.08 in (27.432 mm)
Inside Diameter1.08 in (27.432 mm)
Spring TypeSingle
Spring Rate (Lbs./In.)241
Part FitmentSemi Universal
Outside Diameter1.464 in (37.2 mm)
Number Of Springs Per ValveSingle
Camshaft TypeHydraulic
Vendor Part Number940-1
Package Qty1
Package TypeEA
