Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Outer

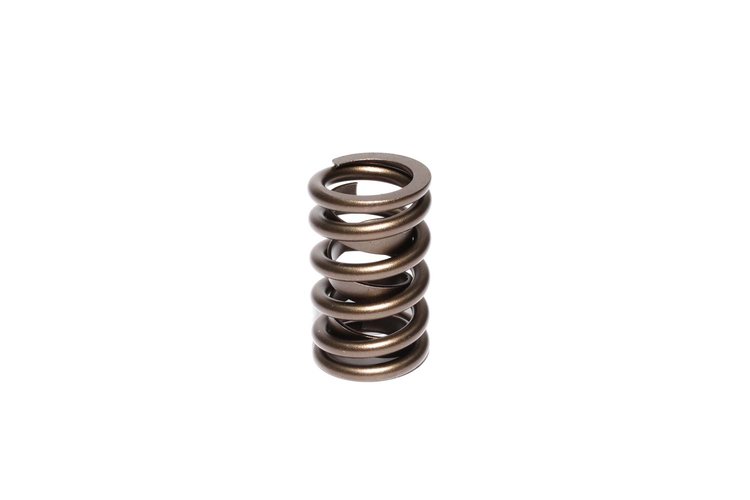

- Single Outer Valve Spring
- Rate: 454 lbs
- .711'' ID, 1.269'' OD
- Seat Load: 130 lbs at 1.750''
- Open Load: 391 lbs at 1.175''
- Coil Bind Height: 1.100''
- With Damper
- 1/pkg
Valve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit
Engine Valve Spring
Part TypeValve Spring
BrandCOMP CAMS
Package Height4.4
Package Width4.4
Package Length4.6
Weight0.25 PG
Part CategoryPerformance Parts
CoatedNo
Coil Bind Height1.13 in (28.702 mm)
Damper Spring IncludedYes
Spring Rate441 lbs./in.
PositionOuter
Open Height1.25 in (31.8 mm)
Open Pressure (Lbs.)359
Installed Pressure (Lbs.)135
QuantitySold individually
Installed Height1.75 in (44.45 mm)
Valve Spring StyleStandard
Outside Diameter Of Outer Spring1.255 in (31.9 mm)
Inside Diameter Of Outer Spring0.871 in (22.123 mm)
Inside Diameter0.876 in (22.25 mm)
Spring TypeSingle
Spring Rate (Lbs./In.)447
Outside Diameter1.26 in (32 mm)
Number Of Springs Per ValveSingle
Camshaft TypeHydraulic
Vendor Part Number941-1
Package Qty1
Package TypeEA
