Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

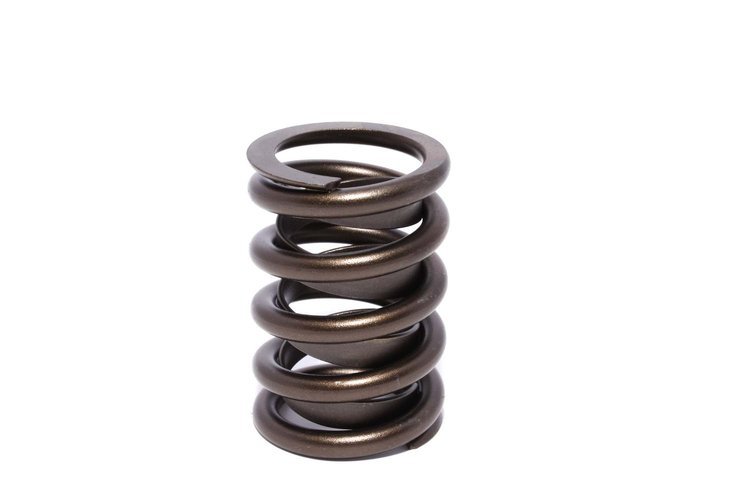

Outer
- Single Outer Valve Spring
- Rate: 339 lbs
- 1.027'' ID, 1.437'' OD
- Seat Load: 115 lbs at 1.700''
- Open Load: 284 lbs at 1.200''
- Coil Bind Height: 1.125''
- With Damper
- 1/pkg
Valve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit
Engine Valve Spring
- Comp Cams Valve Springs are tested under stresses much greater than normal to ensure consistency. Isolating an engine's purpose is first when selecting proper springs. Verify load capacity for optimal performance.
Part TypeValve Spring
Product LineComp Cams Single Valve Springs
BrandCOMP CAMS
Package Height2.0
Package Width2.5
Package Length4.0
Weight0.2 PG
Part CategoryPerformance Parts
CoatedNo
Coil Bind Height1.125 in (28.575 mm)
Damper Spring IncludedYes
Spring Rate339 lbs./in.
PositionOuter
Open Height1.2 in (30.5 mm)
Open Pressure (Lbs.)284
Installed Pressure (Lbs.)115
QuantitySold individually
Installed Height1.7 in (43.18 mm)
Valve Spring StyleStandard
Outside Diameter Of Outer Spring1.437 in (36.5 mm)
Inside Diameter Of Outer Spring1.039 in (26.391 mm)
Inside Diameter1.039 in (26.391 mm)
Spring TypeSingle
Spring Rate (Lbs./In.)339
Outside Diameter1.437 in (36.5 mm)
Number Of Springs Per ValveSingle
Camshaft TypeHydraulic
Vendor Part Number942-1
Package Qty1
Package TypeEA
