Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

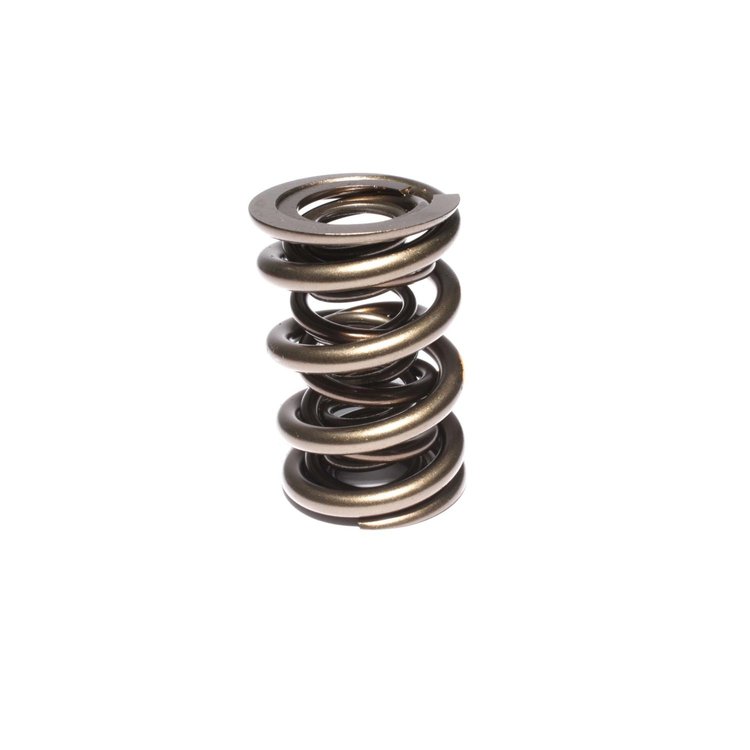

Hi-Tech Triple Valve Springs
- Hi-Tech Triple Valve Spring
- O.D.: 1.645"
- I.D.: .635"
- Seat Load: 250lbs/in @ 2.050
- Open Load: 800 lbs/in @1.250
- Coil Bind: 1.130"
- Rate: 688 lbs/in.
- 1/pkg.
- Proprietary Alloy
- Maintain Higher Loads
- 1 Year Limited Warranty
Valve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit
Engine Valve Spring
Part TypeValve Spring
BrandCOMP CAMS
Package Height1.5
Package Width3.2
Package Length5.5
Weight0.46 PG
Part CategoryPerformance Parts
CoatedNo
Coil Bind Height1.145 in (29.083 mm)
Damper Spring IncludedNo
Spring Rate688 lbs./in.
PositionN/A
Open Height1.25 in (31.8 mm)
Open Pressure (Lbs.)800
Installed Pressure (Lbs.)250
QuantitySold individually
Installed Height2.05 in (52.07 mm)
Inside Diameter Of Inner Spring0.635 in (16.129 mm)
Valve Spring StyleStandard
Outside Diameter Of Outer Spring1.645 in (41.8 mm)
Inside Diameter Of Outer Spring1.195 in (30.353 mm)
Inside Diameter0.635 in (16.129 mm)
Spring TypeTriple
Spring Rate (Lbs./In.)688
Outside Diameter1.645 in (41.8 mm)
Number Of Springs Per ValveTriple
Camshaft TypeHydraulic
Vendor Part Number946-1
Package Qty1
Package TypeEA
