COMP CAMSPART NUMBER: 249-946-16

Hi-Tech Triple Valve Springs O.D.: 1.645"

Name: Hi-Tech Triple Valve Springs O.D.: 1.645"
Brand: COMP CAMS
SKU: 249-946-16
Price: 535.95 USD
Availability: InStock

^$535⁹⁵

Ships on 09/08/2026

Lowest Price Guarantee

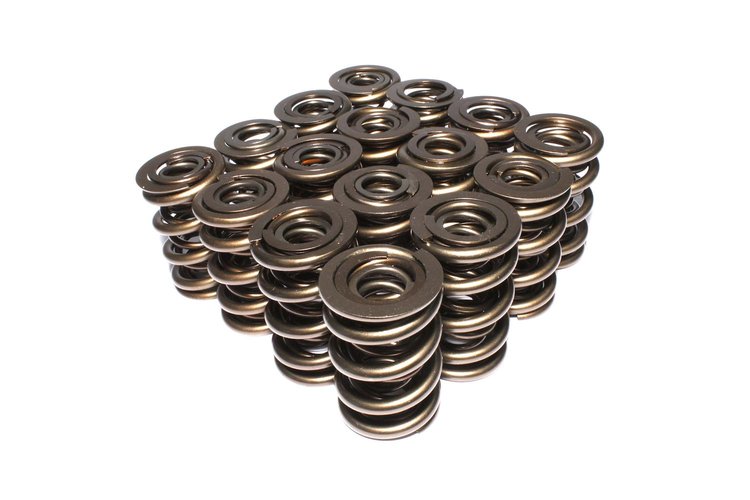

Hi-Tech Triple Valve Springs

O.D.: 1.645"
I.D.: .635"
Seat Load: 250 lbs/in @ 2.050
Open Load: 800 lbs/in @1.250
Coil Bind: 1.130"
Rate: 688 lbs/in.
16/pkg.
Proprietary Alloy
Maintain Higher Loads
1 Year Limited Warranty
Valve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit

Engine Valve Spring Kit

Part TypeValve Spring Kit

BrandCOMP CAMS

Package Height2.25

Package Width8.37

Package Length13.75

Weight7.05 PG

Part CategoryPerformance Parts

CoatedNo

Coil Bind Height1.145 in (29.083 mm)

Damper Spring IncludedNo

Spring Rate688 lbs./in.

PositionN/A

Open Height1.25 in (31.8 mm)

Open Pressure (Lbs.)800

Installed Pressure (Lbs.)250

QuantitySold as a set of 16

Installed Height2.05 in (52.07 mm)

Inside Diameter Of Inner Spring0.635 in (16.129 mm)

Valve Spring StyleStandard

Outside Diameter Of Outer Spring1.645 in (41.8 mm)

Inside Diameter Of Outer Spring1.195 in (30.353 mm)

Inside Diameter0.635 in (16.129 mm)

Spring TypeTriple

Spring Rate (Lbs./In.)688

Outside Diameter1.645 in (41.8 mm)

Number Of Springs Per ValveTriple

Camshaft TypeHydraulic

Vendor Part Number946-16

Package Qty1

Package TypeEA
