Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

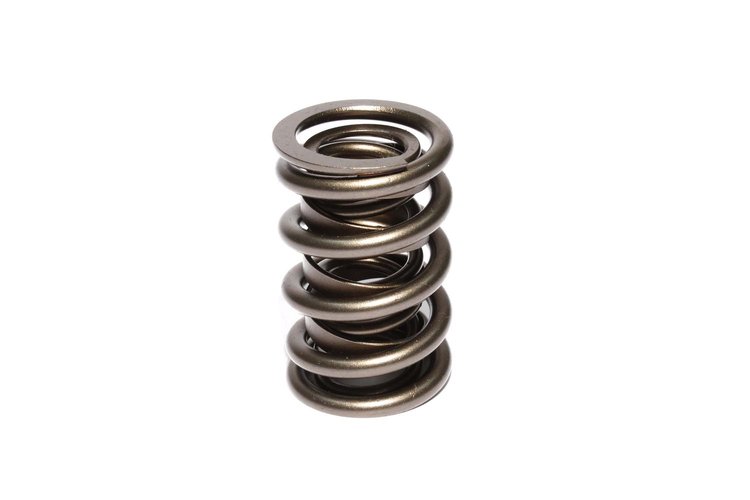

1.550 in. Outside Diameter
- Dual Valve Springs
- Outer Spring O.D.: 1.550 in.
- Outer Spring I.D.: 1.137 in.
- Inner Spring I.D.: 0.747 in.
- Seat Load: 148lbs
- Coil Bind: 1.085 in.
- Spring Rate: 473lbs/in.
- With damper
- Sold Individually
- Dual Valve Spring
- Coiled On the Most Advanced CNC Machines
- 1 Year Limited Warranty
Valve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit
Engine Valve Spring
Part TypeValve Spring
BrandCOMP CAMS
Package Height2.0
Package Width4.0
Package Length6.0
Weight0.36 PG
Part CategoryPerformance Parts
CoatedYes
Coil Bind Height1.085 in (27.559 mm)
Damper Spring IncludedYes
Spring Rate496 lbs./in.
PositionN/A
Open Height1.25 in (31.8 mm)
Open Pressure (Lbs.)484
Installed Pressure (Lbs.)162
QuantitySold individually
Installed Height1.9 in (48.26 mm)
Inside Diameter Of Inner Spring0.749 in (19.025 mm)
Valve Spring StyleStandard
Outside Diameter Of Outer Spring1.535 in (39 mm)
Inside Diameter Of Outer Spring1.135 in (28.829 mm)
Inside Diameter0.755 in (19.177 mm)
Spring TypeDouble
Spring Rate (Lbs./In.)496
Outside Diameter1.535 in (39 mm)
Number Of Springs Per ValveDual
Camshaft TypeHydraulic
Vendor Part Number953-1
Package Qty1
Package TypeEA
