Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

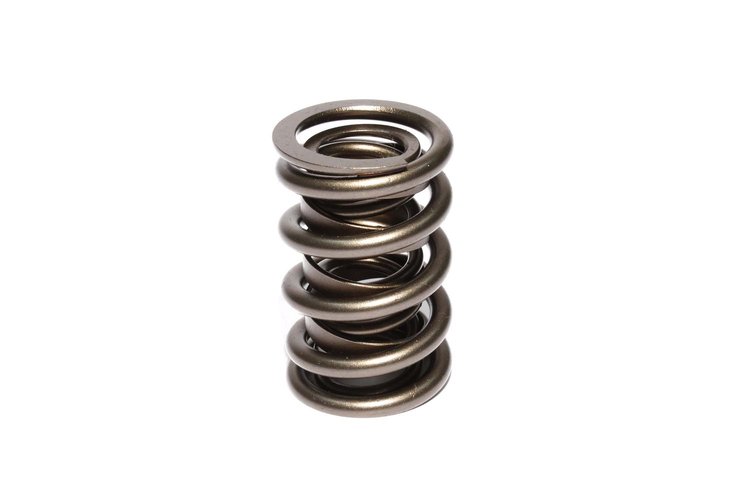

1.536 in. Outside Diameter
- Dual Valve Springs
- Outer Spring O.D.: 1.536 in.
- Outer Spring I.D.: 1.112 in.
- Inner Spring I.D.: 0.720 in.
- Seat Load: 210lbs
- Coil Bind: 1.170 in.
- Spring Rate: 483lbs/in.
- With damper
- Sold Individually
- Dual Valve Spring
- Coiled On the Most Advanced CNC Machines
- 1 Year Limited Warranty
Valve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit
Engine Valve Spring
Part TypeValve Spring
BrandCOMP CAMS
Package Height1.6
Package Width1.7
Package Length2.6
Weight0.1 PG
Part CategoryPerformance Parts
CoatedNo
Coil Bind Height1.17 in (29.718 mm)
Damper Spring IncludedYes
Spring Rate483 lbs./in.
PositionN/A
Open Height1.25 in (31.8 mm)
Open Pressure (Lbs.)537
Installed Pressure (Lbs.)223
QuantitySold individually
Installed Height1.9 in (48.26 mm)
Inside Diameter Of Inner Spring0.761 in (19.329 mm)
Valve Spring StyleStandard
Outside Diameter Of Outer Spring1.535 in (39 mm)
Inside Diameter Of Outer Spring1.111 in (28.219 mm)
Inside Diameter0.731 in (18.567 mm)
Spring TypeDouble
Spring Rate (Lbs./In.)483
Outside Diameter1.535 in (39 mm)
Number Of Springs Per ValveDual
Camshaft TypeHydraulic
Vendor Part Number954-1
Package Qty1
Package TypeEA
