Outer

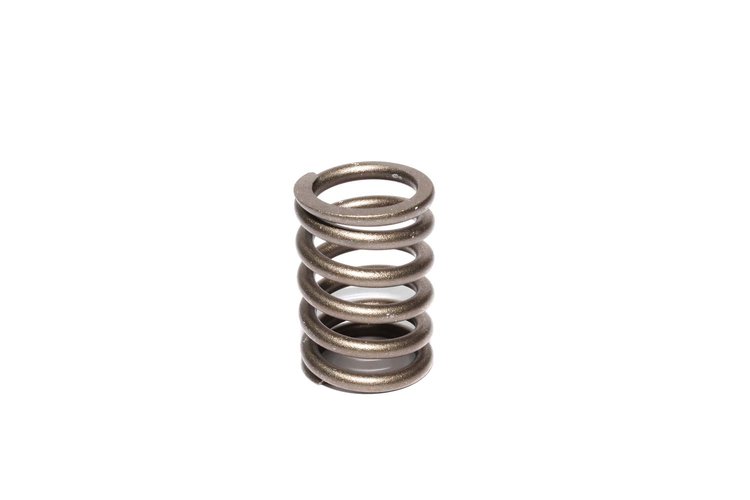

- Single Outer Valve Spring
- Rate: 251 lbs
- 1.020'' ID, 1.406'' OD
- Seat Load: 80 lbs at 1.700''
- Open Load: 180 lbs at 1.300''
- Coil Bind Height: 1.203''
- No Damper
- 1/pkg
Valve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit
Part TypeValve Spring
BrandCOMP CAMS
Package Height1.5
Package Width4.0
Package Length6.0
Weight0.25 PG
Part CategoryPerformance Parts
CoatedNo
Coil Bind Height1.203 in (30.556 mm)
Damper Spring IncludedNo
Spring Rate251 lbs./in.
PositionOuter
Open Height1.3 in (33 mm)
Open Pressure (Lbs.)180
Installed Pressure (Lbs.)82
QuantitySold individually
Installed Height1.7 in (43.18 mm)
Valve Spring StyleStandard
Outside Diameter Of Outer Spring1.406 in (35.7 mm)
Inside Diameter Of Outer Spring1.02 in (25.908 mm)
Inside Diameter1.02 in (25.908 mm)
Spring TypeSingle
Spring Rate (Lbs./In.)251
Part FitmentSemi Universal
Outside Diameter1.4 in (35.6 mm)
Number Of Springs Per ValveSingle
Camshaft TypeHydraulic
Vendor Part Number970-1
Package Qty1
Package TypeEA
