Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Outer

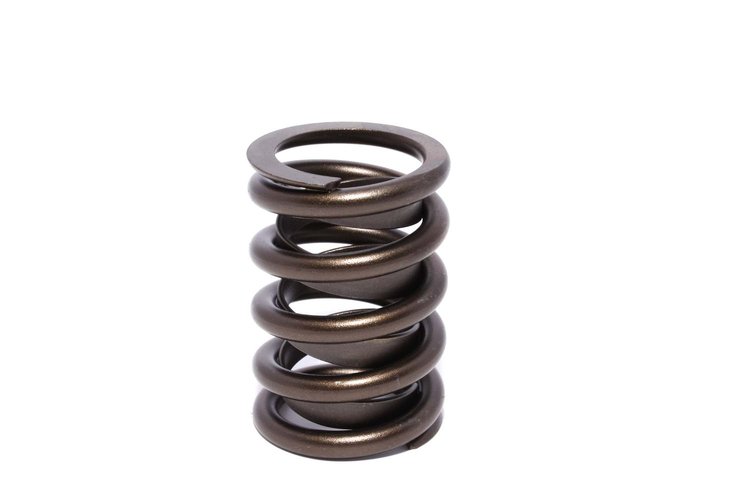

- Single Outer Valve Spring
- Rate: 308 lbs
- 1.060'' ID, 1.460'' OD
- Seat Load: 124 lbs at 1.800''
- Open Load: 293 lbs at 1.250''
- Coil Bind Height: 1.195''
- With Damper
- 1/pkg
Valve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit
Part TypeValve Spring
BrandCOMP CAMS
Package Height2.8
Package Width3.8
Package Length5.0
Weight0.3 PG
Part CategoryPerformance Parts
CoatedNo
Coil Bind Height1.195 in (30.353 mm)
Damper Spring IncludedYes
Spring Rate308 lbs./in.
PositionOuter
Open Height1.3 in (33 mm)
Open Pressure (Lbs.)278
Installed Pressure (Lbs.)124
QuantitySold individually
Installed Height1.8 in (45.72 mm)
Valve Spring StyleStandard
Outside Diameter Of Outer Spring1.46 in (37.1 mm)
Inside Diameter Of Outer Spring1.06 in (26.924 mm)
Inside Diameter1.06 in (26.924 mm)
Spring TypeSingle
Spring Rate (Lbs./In.)308
Outside Diameter1.46 in (37.1 mm)
Number Of Springs Per ValveSingle
Camshaft TypeHydraulic
Vendor Part Number972-1
Package Qty1
Package TypeEA
