Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

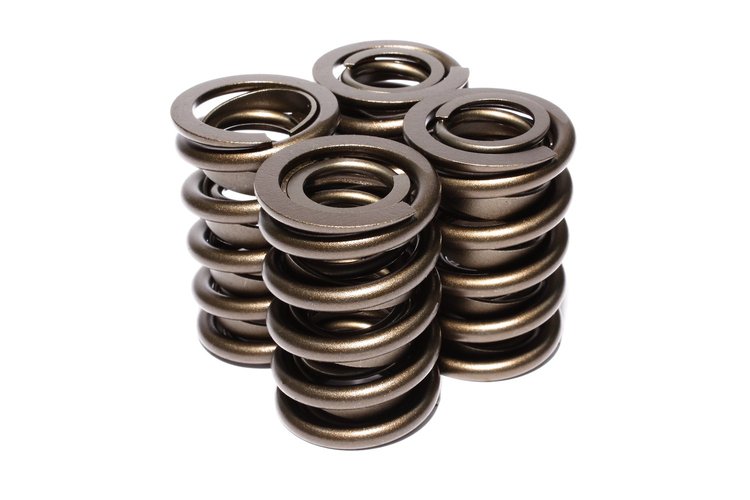

1.460 in. Outside Diameter
- Dual Valve Springs
- Outer Spring O.D.: 1.460 in.
- Outer Spring I.D.: 1.060 in.
- Inner Spring I.D.: 0.700 in.
- Seat Load: 155lbs
- Coil Bind: 1.195 in.
- Spring Rate: 441lbs/in.
- With damper
- Set fo 4
- Dual Valve Spring
- Coiled On the Most Advanced CNC Machines
- 1 Year Limited Warranty
Valve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit
This valve spring kit is perfect for applications that are setup more for high performance street to street/strip applications.
Part TypeValve Spring
BrandCOMP CAMS
Package Height1.5
Package Width5.75
Package Length9.5
Weight1.36 PG
Part CategoryPerformance Parts
Coil Bind Height1.195 in (30.353 mm)
PositionN/A
Inside Diameter0.7 in (17.78 mm)
Open Height1.25 in (31.8 mm)
Open Pressure (Lbs.)419
Installed Pressure (Lbs.)155
Spring TypeDouble
Spring Rate (Lbs./In.)441
Outside Diameter1.46 in (37.1 mm)
Installed Height1.85 in (46.99 mm)
Camshaft TypeHydraulic
Vendor Part Number977-4
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
