Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

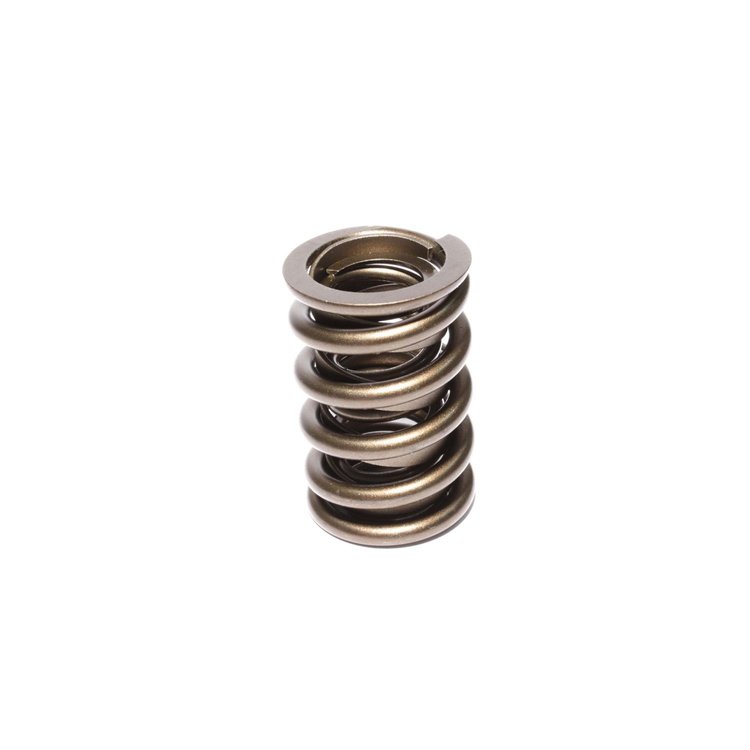

1.460 in. Outside Diameter
- Dual Valve Springs
- Outer Spring O.D.: 1.460 in.
- Outer Spring I.D.: 1.060 in.
- Inner Spring I.D.: 0.697 in.
- Seat Load: 127lbs
- Coil Bind: 1.195 in.
- Spring Rate: 403lbs/in.
- With damper
- Sold Individually
- Dual Valve Spring
- Coiled On the Most Advanced CNC Machines
- 1 Year Limited Warranty
Valve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit
Engine Valve Spring
Part TypeValve Spring
BrandCOMP CAMS
Package Height2.0
Package Width4.0
Package Length6.0
Weight0.63 PG
Part CategoryPerformance Parts
Coil Bind Height1.195 in (30.353 mm)
PositionN/A
Open Height1.25 in (31.8 mm)
Open Pressure (Lbs.)368
Installed Pressure (Lbs.)126
Installed Height1.85 in (46.99 mm)
Inside Diameter0.697 in (17.704 mm)
Spring TypeDouble
Spring Rate (Lbs./In.)403
Part FitmentSemi Universal
Outside Diameter1.46 in (37.1 mm)
Camshaft TypeHydraulic
Vendor Part Number978-1
Package Qty1
Package TypeEA
