Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

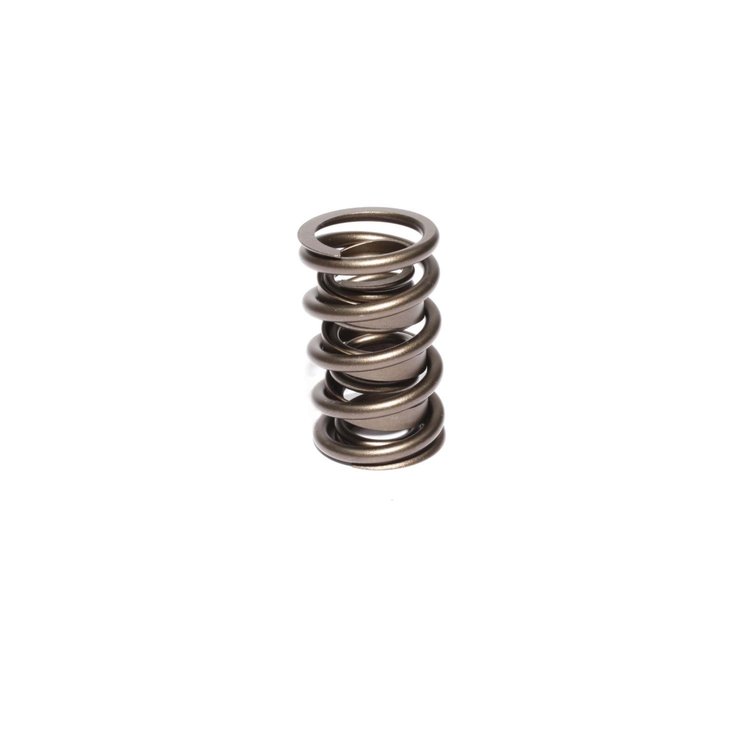

1.430 in. Outside Diameter
- Dual Valve Springs
- Outer Spring O.D.: 1.430 in.
- Outer Spring I.D.: 1.070 in.
- Inner Spring I.D.: 0.697 in.
- Seat Load: 132lbs
- Coil Bind: 1.150 in.
- Spring Rate: 322lbs/in.
- With damper
- Sold Individually
- Dual Valve Spring
- Coiled On the Most Advanced CNC Machines
- 1 Year Limited Warranty
Valve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit
Part TypeValve Spring
BrandCOMP CAMS
Package Height1.6
Package Width2.1
Package Length4.2
Weight0.27 PG
Part CategoryPerformance Parts
CoatedNo
Coil Bind Height1.15 in (29.21 mm)
Damper Spring IncludedYes
Spring Rate322 lbs./in.
PositionN/A
Open Height1.25 in (31.8 mm)
Open Pressure (Lbs.)280
Installed Pressure (Lbs.)132
QuantitySold individually
Installed Height1.75 in (44.45 mm)
Inside Diameter Of Inner Spring0.697 in (17.704 mm)
Valve Spring StyleStandard
Outside Diameter Of Outer Spring1.43 in (36.3 mm)
Inside Diameter Of Outer Spring1.07 in (27.178 mm)
Inside Diameter0.697 in (17.704 mm)
Spring TypeDouble
Spring Rate (Lbs./In.)296
Outside Diameter1.43 in (36.3 mm)
Number Of Springs Per ValveDual
Camshaft TypeHydraulic
Vendor Part Number986-1
Package Qty1
Package TypeEA
