Product Discontinued

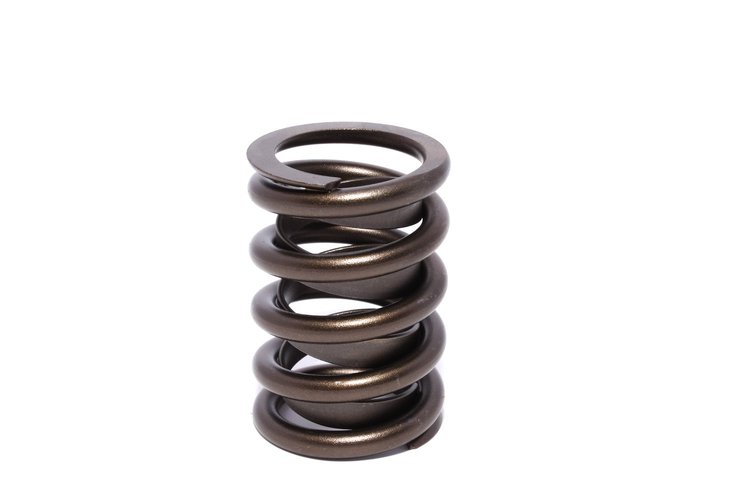

COMP CAMSPART NUMBER: 249-990-1

Single Outer Valve Spring Rate: 269 lbs

Name: Single Outer Valve Spring Rate: 269 lbs
Brand: COMP CAMS
SKU: 249-990-1
Price: 13.95 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Outer

Rate: 269 lbs
1.063'' ID, 1.437'' OD
Seat Load: 113 lbs at 1.500''
Open Load: 207 lbs at 1.150''
Coil Bind Height: .950''
With Damper
1/pkg

Valve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit

Part TypeValve Spring

BrandCOMP CAMS

Package Height1.4

Package Width1.4

Package Length2.0

Weight0.1 PG

Part CategoryPerformance Parts

CoatedNo

Coil Bind Height0.95 in (24.13 mm)

Damper Spring IncludedYes

Spring Rate269 lbs./in.

PositionOuter

Open Height1.15 in (29.2 mm)

Open Pressure (Lbs.)199

Installed Pressure (Lbs.)105

QuantitySold individually

Installed Height1.5 in (38.1 mm)

Valve Spring StyleStandard

Outside Diameter Of Outer Spring1.437 in (36.5 mm)

Inside Diameter Of Outer Spring1.073 in (27.254 mm)

Inside Diameter1.073 in (27.254 mm)

Spring TypeSingle

Spring Rate (Lbs./In.)269

Part FitmentSemi Universal

Outside Diameter1.437 in (36.5 mm)

Number Of Springs Per ValveSingle

Camshaft TypeHydraulic

Vendor Part Number990-1

Package Qty1

Package TypeEA
