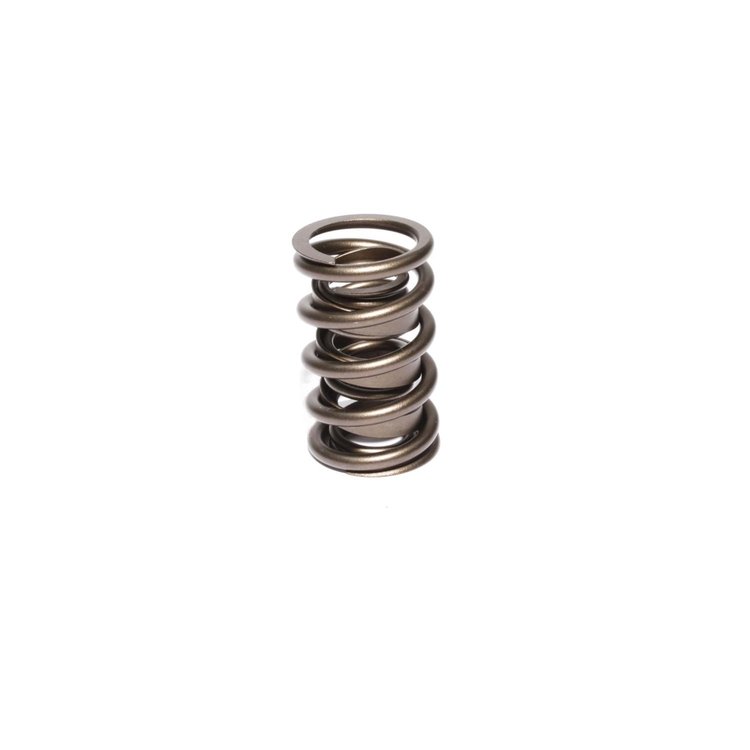

Dual Valve Springs Outer Spring O.D.: 1.437 in.

Vehicle Info Needed

COMP CAMSPART NUMBER: 249-995-1

Dual Valve Springs Outer Spring O.D.: 1.437 in.

Name: Dual Valve Springs Outer Spring O.D.: 1.437 in.
Brand: COMP CAMS
SKU: 249-995-1
Price: 17.95 USD
Availability: InStock

^$17⁹⁵

Ships on Sep 03, 2026

Lowest Price Guarantee

1.437 in. Outside Diameter

Outer Spring O.D.: 1.437 in.
Outer Spring I.D.: 1.073 in.
Inner Spring I.D.: 0.697 in.
Seat Load: 115lbs
Coil Bind: 1.020 in.
Spring Rate: 402lbs/in.
With damper
Sold Individually
Dual Valve Spring
Coiled On the Most Advanced CNC Machines
1 Year Limited Warranty
Valve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit

Part TypeValve Spring

BrandCOMP CAMS

Package Height1.4

Package Width1.6

Package Length2.3

Weight0.2 PG

Part CategoryPerformance Parts

CoatedNo

Coil Bind Height1.05 in (26.67 mm)

Damper Spring IncludedYes

Spring Rate402 lbs./in.

PositionN/A

Open Height1.15 in (29.2 mm)

Open Pressure (Lbs.)330

Installed Pressure (Lbs.)170

QuantitySold individually

Installed Height1.55 in (39.37 mm)

Inside Diameter Of Inner Spring0.697 in (17.704 mm)

Valve Spring StyleStandard

Outside Diameter Of Outer Spring1.437 in (36.5 mm)

Inside Diameter Of Outer Spring1.073 in (27.254 mm)

Inside Diameter0.697 in (17.704 mm)

Spring TypeDouble

Spring Rate (Lbs./In.)399

Outside Diameter1.437 in (36.5 mm)

Number Of Springs Per ValveDual

Camshaft TypeHydraulic

Vendor Part Number995-1

Package Qty1

Package TypeEA
