Vehicle Info NeededCOMP CAMSPART NUMBER: 249-CL08-420-8

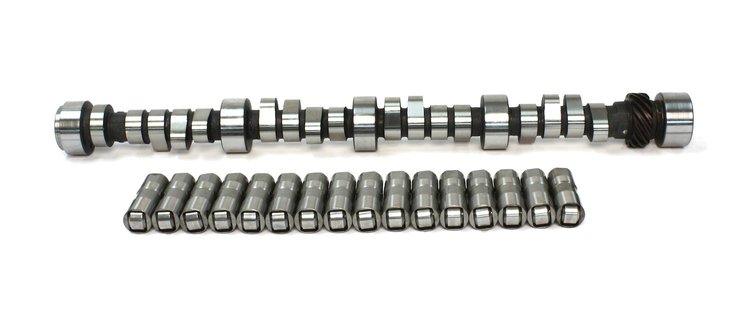

Magnum Hydraulic Roller Camshaft and Lifter Kit Chevy Small Block 305 & 350 Factory Roller Lift: .500"/.500"
$85795
3 left in stock
Ships Today
Lowest Price GuaranteeChevy Small Block 305 & 350, 1987-98 (CARBURETED)
- Magnum Hydraulic Roller Camshaft and Lifter Kit
- Lift: .500"/.500"
- Duration: 270°/270°
- Lobe Separation Angle: 110°
- RPM Range: 1800-5000
- Cams Are Very Aggressive
- Designed For Performance Oriented Vehicles
- Deliver More Power Than Standard Camshafts
- 1 Year Limited Warranty
265, 283, 307, 302, 305, 327, 350, 383, 400, 427, L46, L48, L65, LM1, LT-1, L82, L81, LS9, L83, L98, L05, LG3, LG4, LT1, LT4, Camaro, Corvette, Chevelle, Stingray, Silverado, C10, Firebird, Chevrolet, Chevy, Small Block Chevy, Caprice, Malibu, Impala, Nova, 355, GEN1, Monte Carlo, S10
Mild street performance, slightly noticeable idle. Needs aftermarket intake, headers, 3.40-4.10 gears.
Chevy Small Block 305 & 350 Factory Roller
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height3.3
Package Width5.5
Package Length25.3
Weight13.9 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)215
Cam StyleHydraulic roller tappet
Grind NumberCS 270H-R10
Exh. Duration Advertised (Deg)270
Locks IncludedNo
Engine Make/SizeChevy Small Block (262-400)
Retainers IncludedNo
Intake Valve Lift With Factory Rocker Arm Ratio (I0.5
Int. Duration @ .050 In. (Deg)215
Assembly Lubricant IncludedNo
Basic Operating Rpm Range1,800-5,000
Pushrods IncludedNo
Gaskets IncludedNo
Rocker Arms IncludedNo
Intake Valve Lift0.5 in (12.7 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)270
Lobe Separation (Deg)110
Rpm Range1800-5000
Lifter StyleHydraulic roller
Advertised Duration270 int./270 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.5
Valve Springs IncludedNo
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.500 int./0.500 exh.
QuantitySold as a kit
Valve Stem Seals IncludedNo
Exhaust Valve Lift0.5 in (12.7 mm)
Advertised Intake Duration270
Intake Duration At 050 Inch Lift215
Exhaust Duration At 050 Inch Lift215
Timing Chain And Gears IncludedNo
Advertised Exhaust Duration270
Lifter TypeHydraulic Roller
Part FitmentSemi Universal
Duration At 050 Inch Lift215 int./215 exh.
Valve Springs RequiredYes
Lifters IncludedYes
Vendor Part NumberCL08-420-8
Package Qty1
Package TypeEA
