Product Discontinued
COMP CAMSPART NUMBER: 249-CL08-465-8

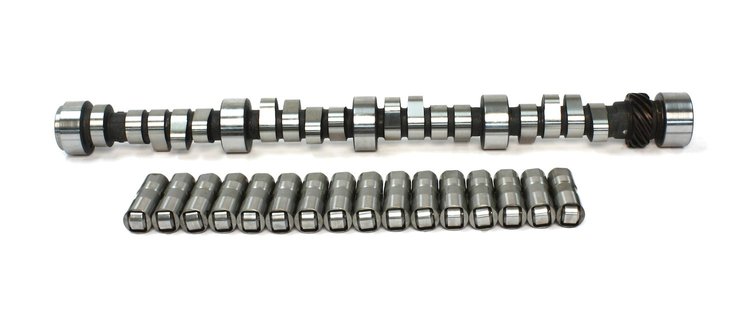

XFI Hydraulic Roller Camshaft and Lifter Kit Small Block Chevy 305/350 1987-95 Lift: .560"/.555" With 1.6 Rockers
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Chevy 305/350ci 1987-98
O.E. Hydraulic Roller Camshaft Applications Except LT1 & LT4.
O.E. Hydraulic Roller Camshaft Applications Except LT1 & LT4.
- XFI Hydraulic Roller Camshaft and Lifter Kit
- Lift: .560"/.555" With 1.6 Rockers
- Duration: 260°/270°
- Lobe Separation Angle: 113°
- RPM Range: 1200-5200
Superb low end and mid-range for 350 tuned port injections. 305 TPI requires chip upgrade.Note: for use with 1987-98 305 & 350ci factory hydraulic roller camshaft applications, EXCEPT LT1 & LT4.
Operating Range: 1200-5200 RPM Duration Advertised: 260° Intake / 270° Exhaust Duration @ .050' Lift: 210° Intake / 218° Exhaust Valve Lift w/1.6 Rockers: .560' Intake / .555' Exhaust Lobe Separation Angle: 113°
Small Block Chevy 305/350 1987-95
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height3.2
Package Width5.9
Package Length25.2
Weight14.05 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)218
Cam StyleHydraulic roller tappet
Grind Number260XFIHR13
Exh. Duration Advertised (Deg)270
Locks IncludedNo
Engine Make/SizeChevy Small Block (262-400)
Retainers IncludedNo
Intake Valve Lift With Factory Rocker Arm Ratio (I0.56
Int. Duration @ .050 In. (Deg)210
Assembly Lubricant IncludedNo
Basic Operating Rpm Range1,200-5,200
Pushrods IncludedNo
Gaskets IncludedNo
Rocker Arms IncludedNo
Intake Valve Lift0.56 in (14.224 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)260
Lobe Separation (Deg)113
Rpm Range1200-5200
Lifter StyleHydraulic roller
Advertised Duration260 int./270 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.555
Valve Springs IncludedNo
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.560 int./0.555 exh.
QuantitySold as a kit
Valve Stem Seals IncludedNo
Exhaust Valve Lift0.555 in (14.097 mm)
Advertised Intake Duration260
Intake Duration At 050 Inch Lift210
Exhaust Duration At 050 Inch Lift218
Timing Chain And Gears IncludedNo
Advertised Exhaust Duration270
Lifter TypeHydraulic Roller
Duration At 050 Inch Lift210 int./218 exh.
Valve Springs RequiredYes
Lifters IncludedYes
Vendor Part NumberCL08-465-8
Package Qty1
Package TypeEA
