Product Discontinued
COMP CAMSPART NUMBER: 249-CL08-470-8

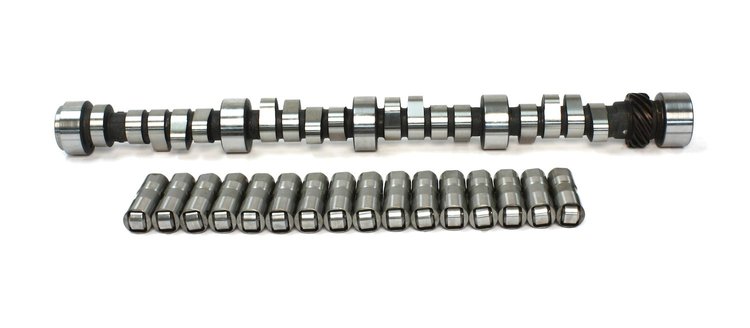

Magnum Hydraulic Roller Camshaft and Lifter Kit Chevy Small Block 305 & 350 Factory Roller Lift: .600"/.600"
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Chevy Small Block 305 & 350, 1987-98 (CARBURETED)
- Magnum Hydraulic Roller Camshaft and Lifter Kit
- Lift: .600"/.600"
- Duration: 314°/314°
- Lobe Separation Angle: 110°
- RPM Range: 3500-6500
- Cams Are Very Aggressive
- Designed For Performance Oriented Vehicles
- Deliver More Power Than Standard Camshafts
- 1 Year Limited Warranty
265, 283, 307, 302, 305, 327, 350, 383, 400, 427, L46, L48, L65, LM1, LT-1, L82, L81, LS9, L83, L98, L05, LG3, LG4, LT1, LT4, Camaro, Corvette, Chevelle, Stingray, Silverado, C10, Firebird, Chevrolet, Chevy, Small Block Chevy, Caprice, Malibu, Impala, Nova, 355, GEN1, Monte Carlo, S10
Limited street/ bracket racing. 10.5:1. 3500+ stall. Headers and race intake.
Chevy Small Block 305 & 350 Factory Roller
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height3.5
Package Width5.8
Package Length25.6
Weight13.45 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)252
Cam StyleHydraulic roller tappet
Grind Number314HR
Exh. Duration Advertised (Deg)314
Locks IncludedNo
Engine Make/SizeChevy Small Block (262-400)
Retainers IncludedNo
Intake Valve Lift With Factory Rocker Arm Ratio (I0.6
Int. Duration @ .050 In. (Deg)252
Assembly Lubricant IncludedNo
Basic Operating Rpm Range3,500-6,500
Pushrods IncludedNo
Gaskets IncludedNo
Rocker Arms IncludedNo
Intake Valve Lift0.6 in (15.24 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)314
Lobe Separation (Deg)110
Rpm Range3500-6500
Lifter StyleHydraulic roller
Advertised Duration314 int./314 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.6
Valve Springs IncludedNo
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.600 int./0.600 exh.
QuantitySold as a kit
Valve Stem Seals IncludedNo
Exhaust Valve Lift0.6 in (15.24 mm)
Advertised Intake Duration314
Intake Duration At 050 Inch Lift252
Exhaust Duration At 050 Inch Lift252
Timing Chain And Gears IncludedNo
Advertised Exhaust Duration314
Lifter TypeHydraulic Roller
Duration At 050 Inch Lift252 int./252 exh.
Valve Springs RequiredYes
Lifters IncludedYes
Vendor Part NumberCL08-470-8
Package Qty1
Package TypeEA
