Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

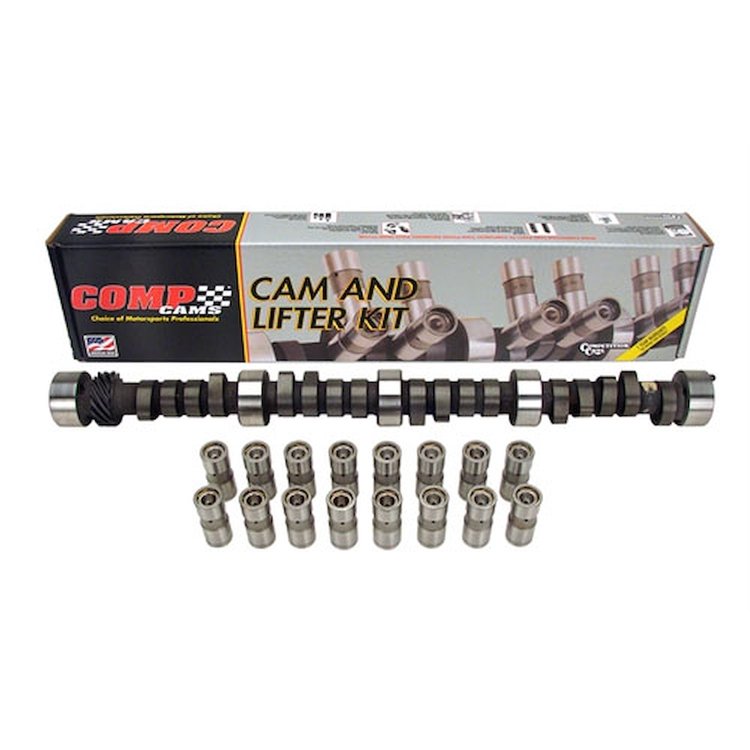

Chevy Big Block 396-454 c.i. 8 cyl. 1965-1996
- Dual Energy Hyd. Flat Tappet Camshaft and Lifter Kit
Chevy Big Block 396-454ci 1965-96
Lift: .460"/.485"
Duration: 255°/261°
Lobe Separation Angle: 110°
RPM Range: 1200-5500
*Note: For 1965-1996 Chevy Big Block 396-454
Good torque, good mileage. Excellent high end horsepower. Smooth idle.
| Operating Range: | 1200-5500 RPM |
| Duration Advertised: | 255° Intake / 261° Exhaust |
| Duration @ .050' Lift: | 203° Intake / 212° Exhaust |
| Valve Lift w/1.5 Rockers: | .460' Intake / .485' Exhaust |
| Lobe Separation Angle: | 110° |
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height3.0
Package Width5.5
Package Length25.5
Weight15.0 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)212
Cam StyleHydraulic flat tappet
Grind Number255DEH
Exh. Duration Advertised (Deg)261
Locks IncludedNo
Engine Make/SizeChevy Big Block (396-502)
Retainers IncludedNo
Intake Valve Lift With Factory Rocker Arm Ratio (I0.46
Int. Duration @ .050 In. (Deg)203
Assembly Lubricant IncludedYes
Basic Operating Rpm Range1,200-5,500
Pushrods IncludedNo
Gaskets IncludedNo
Rocker Arms IncludedNo
Intake Valve Lift0.46 in (11.684 mm)
Computer-Controlled CompatibleYes
Int. Duration Advertised (Deg)255
Lobe Separation (Deg)110
Rpm Range1200-5500
Lifter StyleHydraulic flat tappet
Advertised Duration255 int./261 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.485
Valve Springs IncludedNo
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.460 int./0.485 exh.
QuantitySold as a kit
Valve Stem Seals IncludedNo
Exhaust Valve Lift0.485 in (12.319 mm)
Advertised Intake Duration255
Intake Duration At 050 Inch Lift203
Exhaust Duration At 050 Inch Lift212
Timing Chain And Gears IncludedNo
Advertised Exhaust Duration261
Lifter TypeHydraulic Flat Tappet
Duration At 050 Inch Lift203 int./212 exh.
Valve Springs RequiredYes
Lifters IncludedYes
Vendor Part NumberCL11-206-3
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
