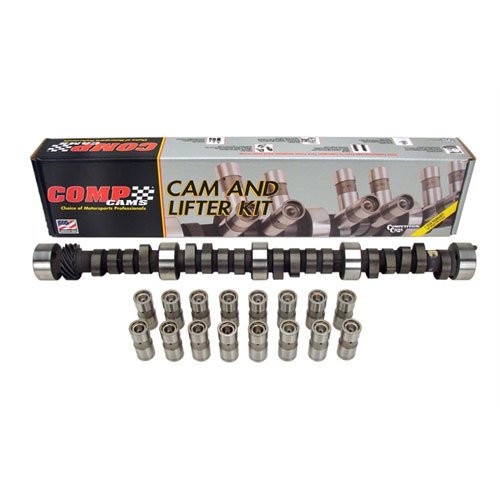

Factory Muscle Mech. Flat Tappet Cam and Lifter Kit Small Block Chevy 262-400ci 1955-98 Lift: .485"/.485"
Product Discontinued
COMP CAMSPART NUMBER: 249-CL12-107-3

Factory Muscle Mech. Flat Tappet Cam and Lifter Kit Small Block Chevy 262-400ci 1955-98 Lift: .485"/.485"

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Small Block Chevy 262-400ci 1955-98
  • Solid Lifter
    • Factory Muscle Mech. Flat Tappet Cam and Lifter Kit
      Small Block Chevy 262-400ci 1955-98
    • Lift: .485"/.485"
    • Duration: 346°/346°
    • Lobe Separation Angle: 114°
    • RPM Range: 2800-6800

    • Replacement For Factory I.D. #3849346
    • 302 1967-1969 Z28 290 HP
    • 327 1964-1965 365/275 HP
    • 350 1970-1971 LT1 370 HP

      SBC; Chevrolet; Chevy Small Block; Small Block Chevrolet; 265; 283; 307; 302; 327; 350; 305; 262; 400; 383; 427; 406; 355; 267; L46; L48; L65; LM1; ZQ3; LT1; L82; L81; LS9; LT-9; L83; L98; L05; L31; LG3; LG4; LU5; L69; LE9; LB9; L03; L30; Chevelle; Camaro; Swap; Corvette; Bel Air; Z28; Z2/8; Duntov; Nova; Monaro; Firebird; Trans-Am; Pontac; C10; C20; K10; Blazer; S10; Monza; Ventura; Monte Carlo; Malibu; El Camino; Caprice; Vortec; SS

    Get the benefit of modern technology in a camshaft for your restored muscle car or factory high performance vehicle and retain that great original sound. Comp Cams grinds these cams using factory specs, to keep the performance of your car just as it was back then. Camshaft & Lifter Kits are indicated by a CL in their part number and include Camshaft, Lifters, Assembly Lube, Decals, and Instructions.

    Features:

    • Reproduction of factory original muscle car camshaft
    • Maintain efficiency and drivability of engines
    • New computer controlled aided design avoids previous factory design compromises
    • Tailored to work with the high compression engine of the 1960s and 70s to produce rough idle
    Part TypeCamshaft Kit
    Product LineComp Cams Factory Muscle Car Camshafts
    BrandCOMP CAMS
    Package Height3.9
    Package Width5.6
    Package Length25.4
    Weight13.21 PG
    Part CategoryPerformance Parts
    Exh. Duration @ .050 In. (Deg)254
    Cam StyleMechanical flat tappet
    Grind Number346S
    Exh. Duration Advertised (Deg)346
    Locks IncludedNo
    Engine Make/SizeChevy Small Block (262-400)
    Retainers IncludedNo
    Intake Valve Lift With Factory Rocker Arm Ratio (I0.485
    Int. Duration @ .050 In. (Deg)254
    Assembly Lubricant IncludedNo
    Basic Operating Rpm Range2,800-6,800
    Pushrods IncludedNo
    Gaskets IncludedNo
    Intake Valve Lash0.024 in (0.61 mm)
    Rocker Arms IncludedNo
    Intake Valve Lift0.485 in (12.319 mm)
    Computer-Controlled CompatibleNo
    Int. Duration Advertised (Deg)346
    Lobe Separation (Deg)114
    Rpm Range2800-6800
    Lifter StyleMechanical flat tappet
    Advertised Duration346 int./346 exh.
    Exhaust Valve Lift With Factory Rocker Arm Ratio (0.485
    Valve Springs IncludedNo
    UsageOEM
    Valve Lift With Factory Rocker Arm Ratio0.485 int./0.485 exh.
    Camshaft Gear Attachment3-bolt
    QuantitySold as a kit
    Valve Stem Seals IncludedNo
    Exhaust Valve Lash0.024 in (0.61 mm)
    Exhaust Valve Lift0.485 in (12.319 mm)
    Advertised Intake Duration346
    Intake Duration At 050 Inch Lift254
    Exhaust Duration At 050 Inch Lift254
    Timing Chain And Gears IncludedNo
    Advertised Exhaust Duration346
    Lifter TypeMechanical Flat Tappet
    Duration At 050 Inch Lift254 int./254 exh.
    Valve Springs RequiredYes
    Lifters IncludedYes
    Vendor Part NumberCL12-107-3
    Package Qty1
    Package TypeEA
