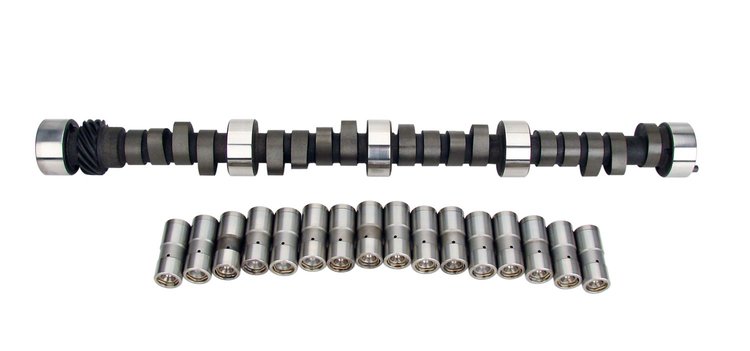

XFI Hydraulic Flat Tappet Camshaft and Lifter Kit Small Block Chevy 262-400ci 1955-98 Lift: .520"/.515" With 1.6 Rockers

Vehicle Info Needed

COMP CAMSPART NUMBER: 249-CL12-366-4

XFI Hydraulic Flat Tappet Camshaft and Lifter Kit Small Block Chevy 262-400ci 1955-98 Lift: .520"/.515" With 1.6 Rockers

Name: XFI Hydraulic Flat Tappet Camshaft and Lifter Kit Small Block Chevy 262-400ci 1955-98 Lift: .520"/.515" With 1.6 Rockers
Brand: COMP CAMS
SKU: 249-CL12-366-4
Price: 397.95 USD
Availability: InStock

^$397⁹⁵

Ships on 09/15/2026

Lowest Price Guarantee

Small Block Chevy 262-400ci 1955-98

Lift: .520"/.515" With 1.6 Rockers
Duration: 268°/280°
Lobe Separation Angle: 113°

RPM Range: 1500-5500

Excellent mid-range for TPI 350 with chip upgrade, injectors, plenum and exhaust system.

265, 283, 307, 302, 305, 327, 350, 383, 400, 427, L46, L48, L65, LM1, LT-1, L82, L81, LS9, L83, L98, L05, LG3, LG4, LT1, LT4, Camaro, Corvette, Chevelle, Stingray, Silverado, C10, Firebird, Chevrolet, Chevy, Small Block Chevy, Caprice, Malibu, Impala, Nova, 355, GEN1, Monte Carlo, S10

Excellent mid-range for TPI 350 with chip upgrade, injectors, plenum and exhaust system. 2000+ stall.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeCamshaft Kit

BrandCOMP CAMS

Package Height3.2

Package Width5.5

Package Length25.5

Weight13.3 PG

Part CategoryPerformance Parts

Exh. Duration @ .050 In. (Deg)231

Cam StyleHydraulic flat tappet

Grind Number268XFIH13

Exh. Duration Advertised (Deg)280

Locks IncludedNo

Engine Make/SizeChevy Small Block (262-400)

Retainers IncludedNo

Intake Valve Lift With Factory Rocker Arm Ratio (I0.52

Int. Duration @ .050 In. (Deg)224

Assembly Lubricant IncludedNo

Basic Operating Rpm Range2,000-6,000

Pushrods IncludedNo

Gaskets IncludedNo

Rocker Arms IncludedNo

Intake Valve Lift0.52 in (13.208 mm)

Computer-Controlled CompatibleNo

Int. Duration Advertised (Deg)268

Lobe Separation (Deg)113

Rpm Range2000-6000

Lifter StyleHydraulic flat tappet

Advertised Duration268 int./280 exh.

Exhaust Valve Lift With Factory Rocker Arm Ratio (0.515

Valve Springs IncludedNo

UsageStreet/Performance

Valve Lift With Factory Rocker Arm Ratio0.520 int./0.515 exh.

Camshaft Gear Attachment3-bolt

QuantitySold as a kit

Valve Stem Seals IncludedNo

Exhaust Valve Lift0.515 in (13.081 mm)

Advertised Intake Duration268

Intake Duration At 050 Inch Lift224

Exhaust Duration At 050 Inch Lift231

Timing Chain And Gears IncludedNo

Advertised Exhaust Duration280

Lifter TypeHydraulic Flat Tappet

Duration At 050 Inch Lift224 int./231 exh.

Valve Springs RequiredYes

Lifters IncludedYes

Vendor Part NumberCL12-366-4

Package Qty1

Package TypeEA
