Vehicle Info NeededCOMP CAMSPART NUMBER: 249-CL12-700-8

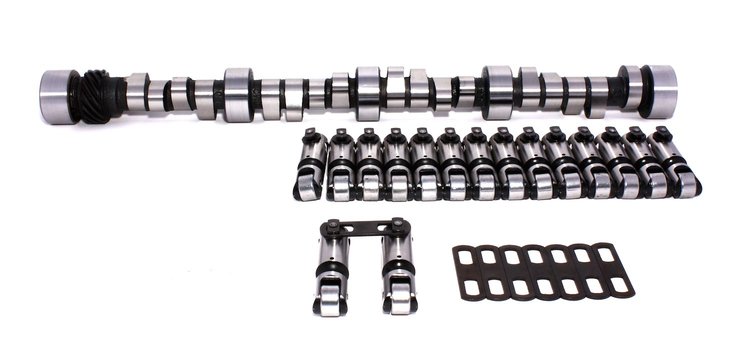

Magnum Mechanical Roller Cam and Lifter Kit Chevy Small Block 262-400ci 1955-98 Lift: .525"/.525"
$1,21095
Ships on 10/22/2026
Lowest Price GuaranteeChevy Small Block 262-400ci 1955-98
- Magnum Mechanical Roller Cam and Lifter Kit
- Lift: .525"/.525"
- Duration: 268°/268°
- Lobe Separation Angle: 110°
- RPM Range: 2000-6000
- Cams Are Very Aggressive
- Designed For Performance Oriented Vehicles
- Deliver More Power Than Standard Camshafts
- 1 Year Limited Warranty
265, 283, 307, 302, 305, 327, 350, 383, 400, 427, L46, L48, L65, LM1, LT-1, L82, L81, LS9, L83, L98, L05, LG3, LG4, LT1, LT4, Camaro, Corvette, Chevelle, Stingray, Silverado, C10, Firebird, Chevrolet, Chevy, Small Block Chevy, Caprice, Malibu, Impala, Nova, 355, GEN1, Monte Carlo, S10
Most versatile, good vacuum, excellent throttle response, noticeable idle, works well with stock manifolds and 2000+ stall.
Chevy Small Block 262-400ci 1955-98
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height3.0
Package Width8.5
Package Length26.5
Weight15.0 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)224
Cam StyleMechanical roller tappet
Grind Number268AR
Exh. Duration Advertised (Deg)268
Locks IncludedNo
Engine Make/SizeChevy Small Block (262-400)
Retainers IncludedNo
Intake Valve Lift With Factory Rocker Arm Ratio (I0.525
Int. Duration @ .050 In. (Deg)224
Assembly Lubricant IncludedNo
Basic Operating Rpm Range2,000-6,000
Pushrods IncludedNo
Gaskets IncludedNo
Intake Valve Lash0.02 in (0.508 mm)
Rocker Arms IncludedNo
Intake Valve Lift0.525 in (13.335 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)268
Lobe Separation (Deg)110
Rpm Range2000-6000
Lifter StyleMechanical roller
Advertised Duration268 int./268 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.525
Valve Springs IncludedNo
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.525 int./0.525 exh.
QuantitySold as a kit
Valve Stem Seals IncludedNo
Exhaust Valve Lash0.02 in (0.508 mm)
Exhaust Valve Lift0.525 in (13.335 mm)
Advertised Intake Duration268
Intake Duration At 050 Inch Lift224
Exhaust Duration At 050 Inch Lift224
Timing Chain And Gears IncludedNo
Advertised Exhaust Duration268
Lifter TypeMechanical Roller
Part FitmentSemi Universal
Duration At 050 Inch Lift224 int./224 exh.
Valve Springs RequiredYes
Lifters IncludedYes
Vendor Part NumberCL12-700-8
Package Qty1
Package TypeEA
