Vehicle Info NeededCOMP CAMSPART NUMBER: 249-CL31-760-8

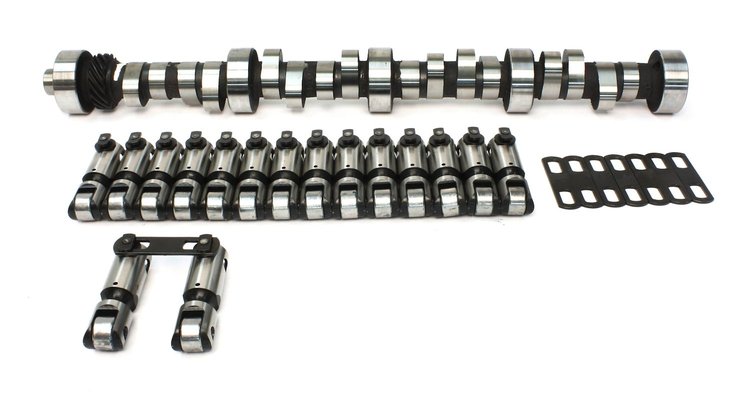

Magnum Mechanical Roller Cam and Lifter Kit Ford 289-302ci 1963-1995 Lift: .586"/.586"
$1,20595
Ships on 09/16/2026
Lowest Price GuaranteeFord 289-302ci 1963-1995
- Magnum Mechanical Roller Cam and Lifter Kit
- Lift: .586"/.586"
- Duration: 288°/288°
- Lobe Separation Angle: 110°
- RPM Range: 2200-6500
- Cams Are Very Aggressive
- Designed For Performance Oriented Vehicles
- Deliver More Power Than Standard Camshafts
- 1 Year Limited Warranty
Ford; SBF; Mustang; Windsor; Fairlane; Meteor; Mercury; GT; 22; 260; Sunbeam; Tiger; 289; 302; 351; 289; HiPo; K-Code; GT-350; Shelby; Boss; 5.0; 308; Windsor; Torino; Cougar; F-150; Squire; Thunderbird; LTD; Galaxie; Grand Marquis
Broad power, lower gear ratio, 2500+ stall with headers. Rough idle.
Ford 289-302ci 1963-1995
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height1.0
Package Width5.75
Package Length13.75
Weight14.0 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)246
Cam StyleMechanical roller tappet
Grind Number288R
Exh. Duration Advertised (Deg)288
Locks IncludedNo
Engine Make/SizeFord 260-302
Retainers IncludedNo
Intake Valve Lift With Factory Rocker Arm Ratio (I0.586
Int. Duration @ .050 In. (Deg)246
Assembly Lubricant IncludedNo
Basic Operating Rpm Range2,200-6,500
Pushrods IncludedNo
Gaskets IncludedNo
Intake Valve Lash0.02 in (0.508 mm)
Rocker Arms IncludedNo
Intake Valve Lift0.586 in (14.884 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)288
Lobe Separation (Deg)110
Rpm Range2200-6500
Lifter StyleMechanical roller
Advertised Duration288 int./288 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.586
Valve Springs IncludedNo
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.586 int./0.586 exh.
QuantitySold as a kit
Valve Stem Seals IncludedNo
Exhaust Valve Lash0.02 in (0.508 mm)
Exhaust Valve Lift0.586 in (14.884 mm)
Advertised Intake Duration288
Intake Duration At 050 Inch Lift246
Exhaust Duration At 050 Inch Lift246
Timing Chain And Gears IncludedNo
Advertised Exhaust Duration288
Lifter TypeMechanical Roller
Part FitmentSemi Universal
Duration At 050 Inch Lift246 int./246 exh.
Valve Springs RequiredYes
Lifters IncludedYes
Vendor Part NumberCL31-760-8
Package Qty1
Package TypeEA
