Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Ford 352-428ci 8 Cyl. 1963-1977

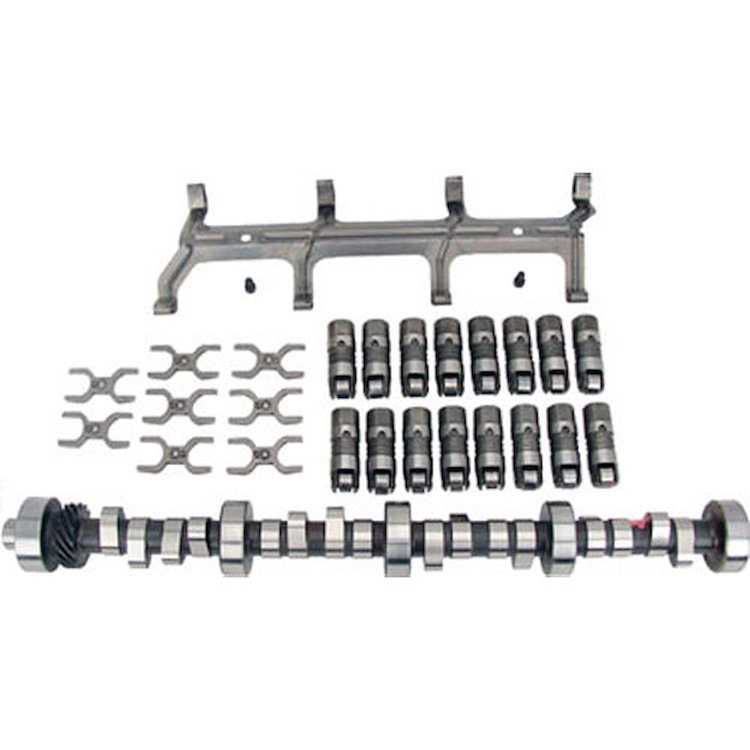

- Xtreme Energy Retro-Fit XR294HR Hydraulic Roller Camshaft & Lifter Kit
- Produces Better Throttle Response
- Produces Top Engine Horsepower
- Delivers Increased Engine Vacuum
- 1 Year Limited Warranty
Ford, FE, 352, 428, Super Cobra Jet, SCJ, Cobra Jet, Mustang, Mach 1, Shelby, 332, 361, 390, 406, 410, 427, 428, Truck, F100, F150, Ford Truck
Lift: .553''/.572''
Duration: 294°/300°
Lobe Separation Angle: 110°
RPM Range: 2800-6100
Includes Lifters
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height3.0
Package Width5.5
Package Length25.5
Weight16.0 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)248
Cam StyleHydraulic roller tappet
Grind NumberXR294HR
Exh. Duration Advertised (Deg)300
Locks IncludedNo
Engine Make/SizeFord 352-428
Retainers IncludedNo
Intake Valve Lift With Factory Rocker Arm Ratio (I0.553
Int. Duration @ .050 In. (Deg)242
Assembly Lubricant IncludedYes
Basic Operating Rpm Range2,800-6,100
Pushrods IncludedNo
Gaskets IncludedNo
Rocker Arms IncludedNo
Intake Valve Lift0.553 in (14.046 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)294
Lobe Separation (Deg)110
Rpm Range2800-6100
Lifter StyleHydraulic roller
Advertised Duration294 int./300 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.572
Valve Springs IncludedNo
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.553 int./0.572 exh.
QuantitySold as a kit
Valve Stem Seals IncludedNo
Exhaust Valve Lift0.572 in (14.529 mm)
Advertised Intake Duration294
Intake Duration At 050 Inch Lift242
Exhaust Duration At 050 Inch Lift248
Timing Chain And Gears IncludedNo
Advertised Exhaust Duration300
Lifter TypeHydraulic Roller Retrofit
Duration At 050 Inch Lift242 int./248 exh.
Valve Springs RequiredYes
Lifters IncludedYes
Vendor Part NumberCL33-443-9
Package Qty1
Package TypeEA
