Vehicle Info NeededCOMP CAMSPART NUMBER: 249-CL34-342-4

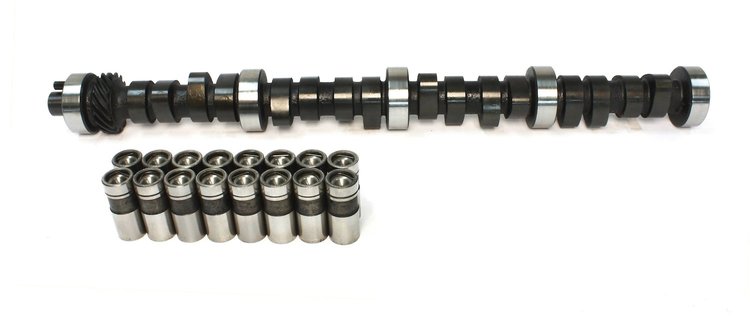

Comp Cams Magnum Mechanical Flat Tappet Camshafts
$45695
Ships on 10/19/2026
Lowest Price GuaranteeFord 429, 460 c.i. 8 CYL. 1968-1994
- Magnum 294S Mechanical Flat Tappet Camshaft & Lifter Kit
Lift: .605"/.605"
Duration: 294°/294°
Lobe Separation Angle: 110°
RPM Range: 2500-6500
Good Street/Strip cam. Excellent power. 3000+ stall with manifolds and 9.5:1 and up compression. Radical Idle.
| Operating Range: | 2500-6500 RPM |
| Duration Advertised: | 294° Intake / 294° Exhaust |
| Duration @ .050' Lift: | 248° Intake / 248° Exhaust |
| Valve Lift w/1.73 Rockers: | .605' Intake / .605' Exhaust |
| Valve Setting: | .022' Intake / .022' Exhaust |
| Lobe Separation Angle: | 110° |
Ford; 429; 460; BBF; Big Block Ford; 385; Cobra Jet; 429 Cobra Jet; Interceptor; Lima; F100; F150; F250; Super Duty; E150; E250
Good street/strip cam. Excellent power. 3000+ stall with manifolds and 9.5:1+ compression. Radical idle.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height3.2
Package Width5.6
Package Length25.3
Weight15.65 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)248
Cam StyleMechanical flat tappet
Exh. Duration Advertised (Deg)294
Locks IncludedNo
Engine Make/SizeFord 429-460
Retainers IncludedNo
Intake Valve Lift With Factory Rocker Arm Ratio (I0.605
Int. Duration @ .050 In. (Deg)248
Assembly Lubricant IncludedYes
Basic Operating Rpm Range2,500-6,500
Pushrods IncludedNo
Gaskets IncludedNo
Intake Valve Lash0.022 in (0.559 mm)
Rocker Arms IncludedNo
Intake Valve Lift0.605 in (15.367 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)294
Lobe Separation (Deg)110
Rpm Range2500-6500
Lifter StyleMechanical flat tappet
Advertised Duration294 int./294 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.605
Valve Springs IncludedNo
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.605 int./0.605 exh.
QuantitySold as a kit
Valve Stem Seals IncludedNo
Exhaust Valve Lash0.022 in (0.559 mm)
Exhaust Valve Lift0.605 in (15.367 mm)
Advertised Intake Duration294
Intake Duration At 050 Inch Lift248
Exhaust Duration At 050 Inch Lift248
Timing Chain And Gears IncludedNo
Advertised Exhaust Duration294
Lifter TypeMechanical Flat Tappet
Duration At 050 Inch Lift248 int./248 exh.
Valve Springs RequiredYes
Lifters IncludedYes
Vendor Part NumberCL34-342-4
Package Qty1
Package TypeEA
