Vehicle Info NeededCOMP CAMSPART NUMBER: 249-CL34-772-9

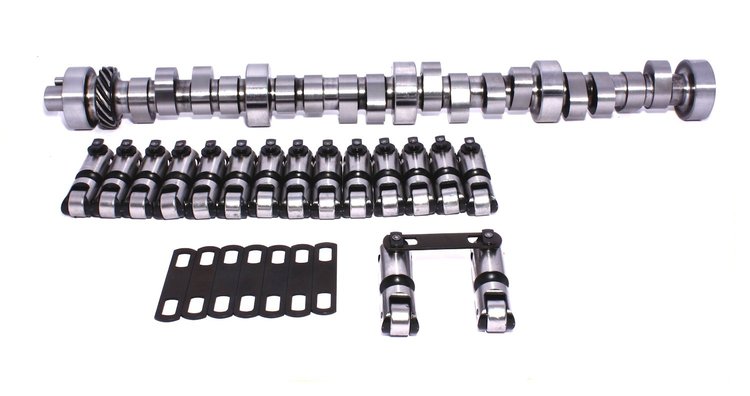

Xtreme Energy Mechanical Roller Camshaft and Lifter Kit Ford 429, 460ci 1968-94 Lift: .664"/.671"
$1,30895
Ships on 10/23/2026
Lowest Price GuaranteeFord 429, 460 c.i. 8 CYL. 1968-1994
- Xtreme Energy Mechanical Roller Camshaft and Lifter Kit
- Lift: .664"/.671"
- Duration: 286°/292°
- Lobe Separation Angle: 110°
- RPM Range: 3000-7000
- Produces Better Throttle Response
- Produces Top Engine Horsepower
- Delivers Increased Engine Vacuum
- 1 Year Limited Warranty
Ford; 429; 460; BBF; Big Block Ford; 385; Cobra Jet; 429 Cobra Jet; Interceptor; Lima; F100; F150; F250; Super Duty; E150; E250
Great for weekend warrior, 3000+ stall, needs intake, exhaust, gears.
Ford 429, 460ci 1968-94
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height2.9
Package Width3.0
Package Length24.4
Weight12.0 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)254
Cam StyleMechanical roller tappet
Grind NumberXR286R-10
Exh. Duration Advertised (Deg)292
Locks IncludedNo
Engine Make/SizeFord 429-460
Retainers IncludedNo
Intake Valve Lift With Factory Rocker Arm Ratio (I0.664
Int. Duration @ .050 In. (Deg)248
Assembly Lubricant IncludedNo
Basic Operating Rpm Range3,000-7,000
Pushrods IncludedNo
Gaskets IncludedNo
Intake Valve Lash0.016 in (0.406 mm)
Rocker Arms IncludedNo
Intake Valve Lift0.664 in (16.866 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)286
Lobe Separation (Deg)110
Rpm Range3000-7000
Lifter StyleMechanical roller
Advertised Duration286 int./292 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.671
Valve Springs IncludedNo
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.664 int./0.671 exh.
QuantitySold as a kit
Valve Stem Seals IncludedNo
Exhaust Valve Lash0.018 in (0.457 mm)
Exhaust Valve Lift0.671 in (17.043 mm)
Advertised Intake Duration286
Intake Duration At 050 Inch Lift248
Exhaust Duration At 050 Inch Lift254
Timing Chain And Gears IncludedNo
Advertised Exhaust Duration292
Lifter TypeMechanical Roller
Part FitmentSemi Universal
Duration At 050 Inch Lift248 int./254 exh.
Valve Springs RequiredYes
Lifters IncludedYes
Vendor Part NumberCL34-772-9
Package Qty1
Package TypeEA
