Vehicle Info NeededCOMP CAMSPART NUMBER: 249-CL35-320-8

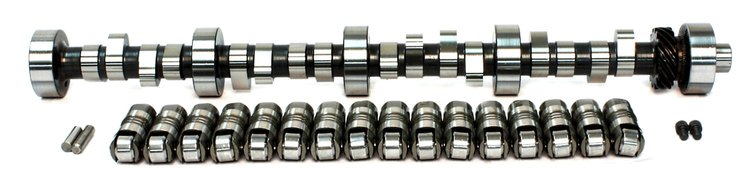

Comp Cams Xtreme Energy Hydraulic Roller Camshafts
$91195
Ships on 10/19/2026
Lowest Price GuaranteeFord 5.0L 8 cyl. 1982-2002Computer Controlled (EFI) for engines originally equipped with hydraulic roller camshaft. (WITH 1.7 ROCKERS)
- Xtreme Energy XE264HR Hydraulic Roller Camshaft & Lifter Kit
- Produces Better Throttle Response
- Produces Top Engine Horsepower
- Delivers Increased Engine Vacuum
- 1 Year Limited Warranty
Ford; SBF; Mustang; Windsor; Fairlane; Meteor; Mercury; GT; 22; 260; Sunbeam; Tiger; 289; 302; 351; 289; HiPo; K-Code; GT-350; Shelby; Boss; 5.0; 308; Windsor; Torino; Cougar; F-150; Squire; Thunderbird; LTD; Galaxie; Grand Marquis
For use with 1.7:1 rockers. Mild street performance, good upgrade for factory cam.
Lift: .544"/.544"
Duration: 264°/270°
Lobe Separation Angle: 112°
RPM Range: 1500-5500
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height3.0
Package Width6.5
Package Length26.0
Weight16.0 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)218
Cam StyleHydraulic roller tappet
Grind NumberXE264HR
Exh. Duration Advertised (Deg)270
Locks IncludedNo
Engine Make/SizeFord 260-302
Retainers IncludedNo
Intake Valve Lift With Factory Rocker Arm Ratio (I0.544
Int. Duration @ .050 In. (Deg)212
Assembly Lubricant IncludedNo
Basic Operating Rpm Range1,500-5,500
Pushrods IncludedNo
Gaskets IncludedNo
Rocker Arms IncludedNo
Intake Valve Lift0.544 in (13.818 mm)
Computer-Controlled CompatibleYes
Int. Duration Advertised (Deg)264
Lobe Separation (Deg)112
Rpm Range1500-5500
Lifter StyleHydraulic roller
Advertised Duration264 int./270 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.544
Valve Springs IncludedNo
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.544 int./0.544 exh.
QuantitySold as a kit
Valve Stem Seals IncludedNo
Exhaust Valve Lift0.544 in (13.818 mm)
Advertised Intake Duration264
Intake Duration At 050 Inch Lift212
Exhaust Duration At 050 Inch Lift218
Timing Chain And Gears IncludedNo
Advertised Exhaust Duration270
Lifter TypeHydraulic Roller
Part FitmentSemi Universal
Duration At 050 Inch Lift212 int./218 exh.
Valve Springs RequiredYes
Lifters IncludedYes
Vendor Part NumberCL35-320-8
Package Qty1
Package TypeEA
