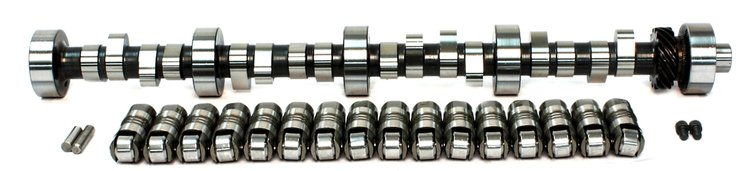

Magnum Hydraulic Roller Camshaft and Lifter Kit Ford 351W 1969-1995 Retro Fit Lift: .533"/.533"
Product Discontinued
COMP CAMSPART NUMBER: 249-CL35-422-8

Magnum Hydraulic Roller Camshaft and Lifter Kit Ford 351W 1969-1995 Retro Fit Lift: .533"/.533"

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Ford 351W 1969-1995
  • Retro-Fit Non-EFI
    • Magnum Hydraulic Roller Camshaft and Lifter Kit
      Ford 351W 1969-1995 Retro Fit
    • Lift: .533"/.533"
    • Duration: 270°/270°
    • Lobe Separation Angle: 110°
    • RPM Range: 1800-5000

    • For engines that DID NOT come from the factory with hydraulic roller cams, NOT FOR E.F.I.
    • Cams Are Very Aggressive
    • Designed For Performance Oriented Vehicles
    • Deliver More Power Than Standard Camshafts
    • 1 Year Limited Warranty

      Ford, 351W, Windsor, 351 Windsor, 302, 5.0 HO, Explorer, Mutang, Ford Mustang, 408, 347, Fox Body Mustang, Fox Body, 302 HO, Cougar, F100, F150


      Mild street performance increase. Slight lope at idle. Works with stock converter, best with 1800+ stall and gears.

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

    Part TypeCamshaft Kit
    BrandCOMP CAMS
    Package Height3.0
    Package Width6.5
    Package Length26.0
    Weight16.0 PG
    Part CategoryPerformance Parts
    Exh. Duration @ .050 In. (Deg)215
    Cam StyleHydraulic roller tappet
    Grind Number270HR
    Exh. Duration Advertised (Deg)270
    Locks IncludedNo
    Engine Make/SizeFord 5.8L/351W
    Retainers IncludedNo
    Intake Valve Lift With Factory Rocker Arm Ratio (I0.533
    Int. Duration @ .050 In. (Deg)215
    Assembly Lubricant IncludedNo
    Basic Operating Rpm Range1,800-5,000
    Pushrods IncludedNo
    Gaskets IncludedNo
    Rocker Arms IncludedNo
    Intake Valve Lift0.533 in (13.538 mm)
    Computer-Controlled CompatibleNo
    Int. Duration Advertised (Deg)270
    Lobe Separation (Deg)110
    Rpm Range1800-5000
    Lifter StyleHydraulic roller
    Advertised Duration270 int./270 exh.
    Exhaust Valve Lift With Factory Rocker Arm Ratio (0.533
    Valve Springs IncludedNo
    UsageStreet/Performance
    Valve Lift With Factory Rocker Arm Ratio0.533 int./0.533 exh.
    QuantitySold as a kit
    Valve Stem Seals IncludedNo
    Exhaust Valve Lift0.533 in (13.538 mm)
    Advertised Intake Duration270
    Intake Duration At 050 Inch Lift215
    Exhaust Duration At 050 Inch Lift215
    Timing Chain And Gears IncludedNo
    Advertised Exhaust Duration270
    Lifter TypeHydraulic Roller
    Part FitmentSemi Universal
    Duration At 050 Inch Lift215 int./215 exh.
    Valve Springs RequiredYes
    Lifters IncludedYes
    Vendor Part NumberCL35-422-8
    Package Qty1
    Package TypeEA
