Vehicle Info NeededCOMP CAMSPART NUMBER: 249-CL35-771-8

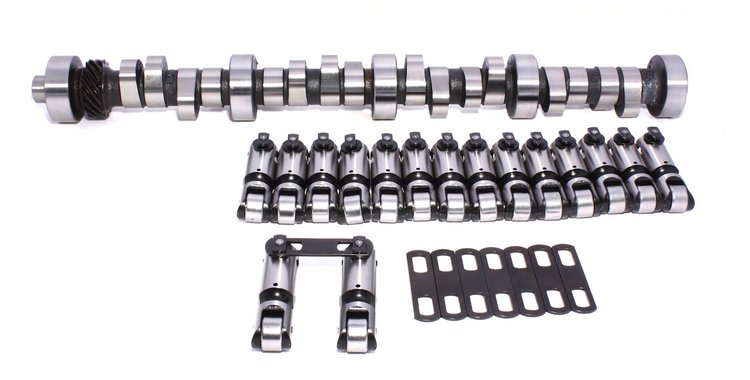

Xtreme Energy Mechanical Roller Camshaft and Lifter Kit Ford 351W 1969-96 Lift: .608"/.614"
$1,33095
Ships on 10/22/2026
Lowest Price GuaranteeFord 351W 1969-96
- Xtreme Energy Mechanical Roller Camshaft and Lifter Kit
- Lift: .608"/.614"
- Duration: 280°/286°
- Lobe Separation Angle: 110°
- RPM Range: 2500-6500
Best in street machines with 2800+ stall, 10:1 or more compression with 3.73-3.90 rear gears.Operating Range: 2500-6500 RPM Duration Advertised: 280° Intake / 286° Exhaust Duration @ .050' Lift: 242° Intake / 248° Exhaust Valve Lift w/1.6 Rockers: .608' Intake / .614' Exhaust Valve Setting: .016' Intake / .018' Exhaust Lobe Separation Angle: 110° Ford, 351W, Windsor, 351 Windsor, 302, 5.0 HO, Explorer, Mutang, Ford Mustang, 408, 347, Fox Body Mustang, Fox Body, 302 HO, Cougar, F100, F150
Best in street machines with 2800+ stall, 10:1+ compression with 3.73-3.90 rear gears.
Ford 351W 1969-96
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height3.1
Package Width8.7
Package Length25.4
Weight16.0 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)248
Cam StyleMechanical roller tappet
Grind NumberFW XR280 R-10
Exh. Duration Advertised (Deg)286
Locks IncludedNo
Engine Make/SizeFord 5.8L/351W
Retainers IncludedNo
Intake Valve Lift With Factory Rocker Arm Ratio (I0.608
Int. Duration @ .050 In. (Deg)242
Assembly Lubricant IncludedNo
Basic Operating Rpm Range2,500-6,500
Pushrods IncludedNo
Gaskets IncludedNo
Intake Valve Lash0.016 in (0.406 mm)
Rocker Arms IncludedNo
Intake Valve Lift0.608 in (15.443 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)280
Lobe Separation (Deg)110
Rpm Range2500-6500
Lifter StyleMechanical roller
Advertised Duration280 int./286 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.614
Valve Springs IncludedNo
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.608 int./0.614 exh.
QuantitySold as a kit
Valve Stem Seals IncludedNo
Exhaust Valve Lash0.018 in (0.457 mm)
Exhaust Valve Lift0.614 in (15.596 mm)
Advertised Intake Duration280
Intake Duration At 050 Inch Lift242
Exhaust Duration At 050 Inch Lift248
Timing Chain And Gears IncludedNo
Advertised Exhaust Duration286
Lifter TypeMechanical Roller
Duration At 050 Inch Lift242 int./248 exh.
Valve Springs RequiredYes
Lifters IncludedYes
Vendor Part NumberCL35-771-8
Package Qty1
Package TypeEA
