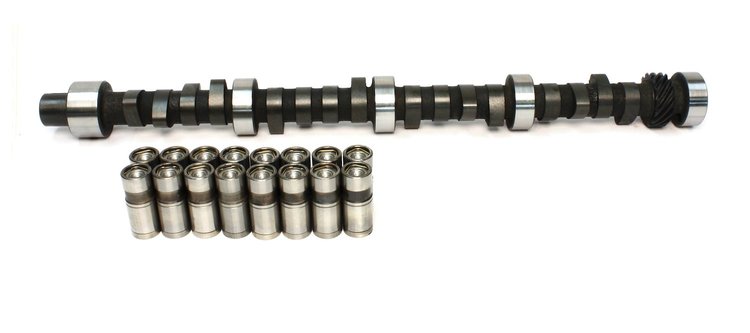

Xtreme Energy 284H Hydraulic Flat Tappet Camshaft & Lifter Kit
Lift: .507''/.510''
Duration: 284°/296°
RPM Range: 2300-6500


Street/Strip, needs 9:1 compression, 2800+ stall converter, headers, gears, rough idle.

Operating Range:	2300-6500 RPM
Duration Advertised:	284° Intake / 296° Exhaust
Duration @ .050' Lift:	240° Intake / 246° Exhaust
Valve Lift w/1.5 Rockers:	.507' Intake / .510' Exhaust
Lobe Separation Angle:	110°

Pontiac; Super Duty; SD; SD455; HO; 455 HO; Trans-Am; Catalina; Firebird; Formula; 421; 455; 400; 428; 350; 265; 301; 370; 389; 301; 287; 317; 347; Ram Air; Ram Air IV; Ram Air III; Bonneville; Grand Prix; LeMans; Parisienne; Grand Am; Century; Regal;


Street/strip, needs 9:1+ compression. 2800+ stall, headers, gears, rough idle.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
