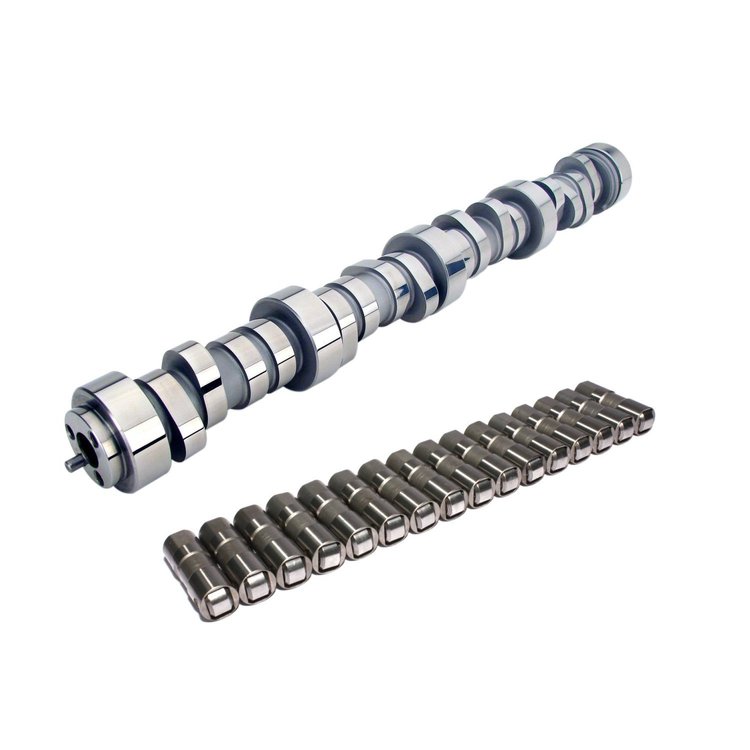

CAM LIFTER KIT LS1 XR269HR-14
InfoVehicle Info Needed
COMP CAMSPART NUMBER: 249-CL54-414-11

CAM LIFTER KIT LS1 XR269HR-14

$59595
ShippingShips on Oct 28, 2026
Lowest PriceLowest Price Guarantee
Currently Unavailable

This product is currently not available. Please call customer service for assistance at 1-800-345-4545.

XFI RPM Hydraulic Roller Camshafts
    XFI RPM Hydraulic Roller Cam and Lifter Kit
    GM Gen III/LS1/LS2/LS6 1997-PRESENT (Three-Bolt)
  • Lift: .525''/.532''
  • Duration: 269°/273°
  • Lobe Separation Angle: 114°
  • RPM Range: 1300-6300

    Great mid-range with superior top end power. Needs computer modifications.

    Operating Range:1300-6300 RPM
    Duration Advertised:269° Intake / 273° Exhaust
    Duration @ .050':216° Intake / 220° Exhaust
    Valve Lift w/1.7 Rockers:.525' Intake / .532' Exhaust
    Lobe Separation Angle:114°

    GM, 4.8, 5.3, 5.7, 6.0, 6.2, 7.0, LS1, LS2, LS3, LS4, LS6, LS7, LSA, LS9, Camaro, Silverado, LS Swap, 383, 350, SBC, Chevelle, Yukon, L92, LM7, 325, GMC, Trailblazer, Corvette, GM LS, GEN III, GEN 3, GEN IV, GEN 4, DOD, AFM, VVT, BTR, Texas Speed


    Great mid-range with superior top end power. Needs programmer.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height3.0
Package Width6.0
Package Length25.0
Weight12.36 PG
Part CategoryPerformance Parts
UsageStreet/Performance
Exh. Duration @ .050 In. (Deg)220
Exh. Duration Advertised (Deg)273
Engine Make/SizeChevy 350 LS6
Int. Duration @ .050 In. (Deg)216
Exhaust Valve Lift0.532 in (13.513 mm)
Intake Valve Lift0.525 in (13.335 mm)
Int. Duration Advertised (Deg)269
Rpm Range1300-6300
Lifter TypeHydraulic Roller
Part FitmentSemi Universal
Vendor Part NumberCL54-414-11
Package Qty1
Package TypeEA
