Vehicle Info NeededCOMP CAMSPART NUMBER: 249-CL94-302-5

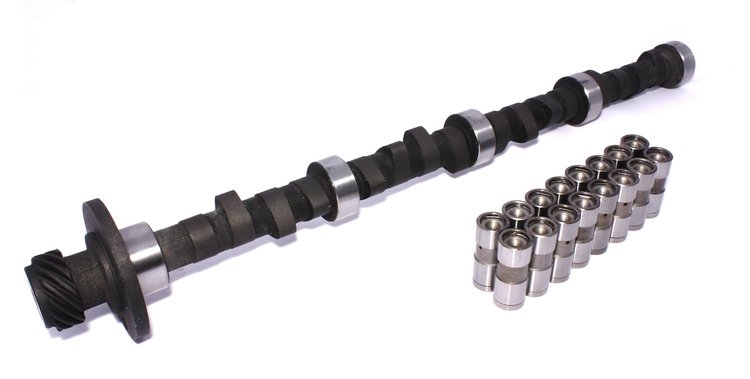

High Energy 260H Hydraulic Flat Tappet Camshaft & Lifter Kit Lift .481"/.481" Duration 260°/260° RPM Range 1000-5000
$56095
Ships on 10/23/2026
Lowest Price GuaranteeCadillac 425, 472, 500 c.i. 8 Cyl. 1963-1979
- High Energy 260H Hydraulic Flat Tappet Camshaft & Lifter Kit
- High Torque Cams
- For Street Applications w/Lower Compression Ratios
- Can Be Used w/Most Stock Components
- 1 Year Limited Warranty
Cadillac; 425; 472; 500; Eldorado; Fleetwood; DeVille; Brouham
Strong torque through low and mid-range, smooth idle.
Lift .481"/.481"
Duration 260°/260°
RPM Range 1000-5000
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height2.8
Package Width5.2
Package Length31.3
Weight14.6 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)212
Cam StyleHydraulic flat tappet
Grind Number260H
Exh. Duration Advertised (Deg)260
Locks IncludedNo
Engine Make/SizeCadillac 472-500
Retainers IncludedNo
Intake Valve Lift With Factory Rocker Arm Ratio (I0.481
Int. Duration @ .050 In. (Deg)212
Assembly Lubricant IncludedYes
Basic Operating Rpm Range1,000-5,000
Pushrods IncludedNo
Gaskets IncludedNo
Rocker Arms IncludedNo
Intake Valve Lift0.481 in (12.217 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)260
Lobe Separation (Deg)110
Rpm Range1000-5000
Lifter StyleHydraulic flat tappet
Advertised Duration260 int./260 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.481
Valve Springs IncludedNo
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.481 int./0.481 exh.
QuantitySold as a kit
Valve Stem Seals IncludedNo
Exhaust Valve Lift0.481 in (12.217 mm)
Advertised Intake Duration260
Intake Duration At 050 Inch Lift212
Exhaust Duration At 050 Inch Lift212
Timing Chain And Gears IncludedNo
Advertised Exhaust Duration260
Lifter TypeHydraulic Flat Tappet
Duration At 050 Inch Lift212 int./212 exh.
Valve Springs RequiredYes
Lifters IncludedYes
Vendor Part NumberCL94-302-5
Package Qty1
Package TypeEA
