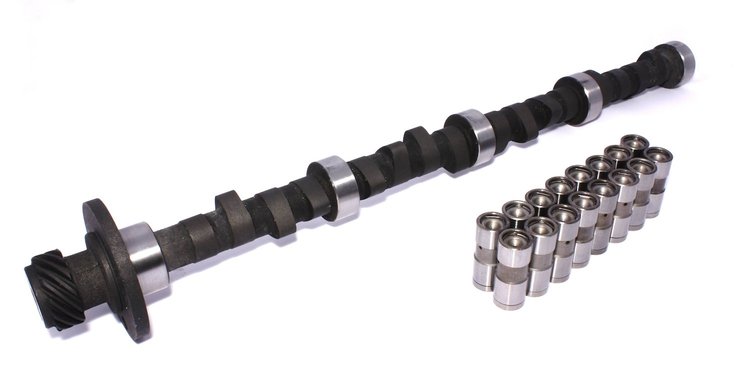

High Energy 268H Hydraulic Flat Tappet Camshaft & Lifter Kit Lift .490"/.490" Duration 268°/268° RPM Range 1200-5200

Vehicle Info Needed

COMP CAMSPART NUMBER: 249-CL94-304-5

High Energy 268H Hydraulic Flat Tappet Camshaft & Lifter Kit Lift .490"/.490" Duration 268°/268° RPM Range 1200-5200

Name: High Energy 268H Hydraulic Flat Tappet Camshaft & Lifter Kit Lift .490"/.490" Duration 268°/268° RPM Range 1200-5200
Brand: COMP CAMS
SKU: 249-CL94-304-5
Price: 554.95 USD
Availability: InStock

^$554⁹⁵

2 left in stock

Ships Tomorrow

Lowest Price Guarantee

Cadillac 425, 472, 500 c.i. 8 Cyl. 1963-1979

Lift

Duration

RPM Range

High Torque Cams
For Street Applications w/Lower Compression Ratios
Can Be Used w/Most Stock Components
1 Year Limited Warranty
Cadillac; 425; 472; 500; Eldorado; Fleetwood; DeVille; Brouham

Good everyday performance cam, broad power, slightly noticeable idle.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeCamshaft Kit

BrandCOMP CAMS

Package Height5.8

Package Width10.3

Package Length26.9

Weight14.75 PG

Part CategoryPerformance Parts

Exh. Duration @ .050 In. (Deg)218

Cam StyleHydraulic flat tappet

Grind NumberCAD 268H-10

Exh. Duration Advertised (Deg)268

Locks IncludedNo

Engine Make/SizeCadillac 472-500

Retainers IncludedNo

Intake Valve Lift With Factory Rocker Arm Ratio (I0.49

Int. Duration @ .050 In. (Deg)218

Assembly Lubricant IncludedYes

Basic Operating Rpm Range1,200-5,200

Pushrods IncludedNo

Gaskets IncludedNo

Rocker Arms IncludedNo

Intake Valve Lift0.49 in (12.446 mm)

Computer-Controlled CompatibleNo

Int. Duration Advertised (Deg)268

Lobe Separation (Deg)110

Rpm Range1200-5200

Lifter StyleHydraulic flat tappet

Advertised Duration268 int./268 exh.

Exhaust Valve Lift With Factory Rocker Arm Ratio (0.49

Valve Springs IncludedNo

UsageStreet/Performance

Valve Lift With Factory Rocker Arm Ratio0.490 int./0.490 exh.

QuantitySold as a kit

Valve Stem Seals IncludedNo

Exhaust Valve Lift0.49 in (12.446 mm)

Advertised Intake Duration268

Intake Duration At 050 Inch Lift218

Exhaust Duration At 050 Inch Lift218

Timing Chain StyleDouble roller

Timing Chain And Gears IncludedNo

Advertised Exhaust Duration268

Lifter TypeHydraulic Flat Tappet

Part FitmentSemi Universal

Duration At 050 Inch Lift218 int./218 exh.

Valve Springs RequiredYes

Lifters IncludedYes

Vendor Part NumberCL94-304-5

Package Qty1

Package TypeEA
