Vehicle Info NeededCOMP CAMSPART NUMBER: 249-CL94-306-5

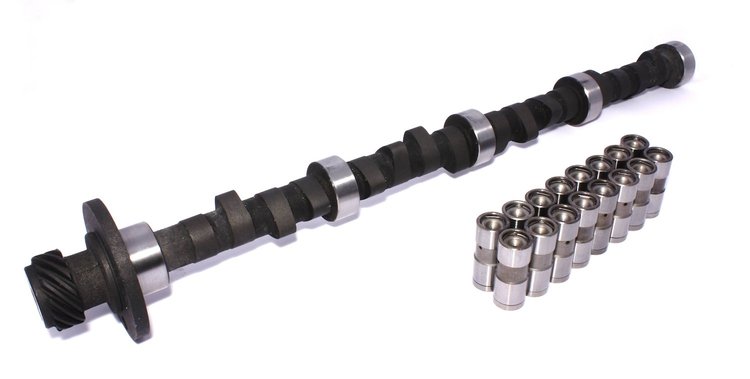

Magnum 270H Hydraulic Flat Tappet Camshaft & Lifter Kit Lift .516"/.516" Duration 270/270 RPM Range 1500-5500
$56195
Ships on 10/23/2026
Lowest Price GuaranteeCadillac 425, 472, 500 c.i. 8 CYL. 1963-1979
- Magnum 270H Hydraulic Flat Tappet Camshaft & Lifter Kit
- Cams Are Very Aggressive
- Designed For Performance Oriented Vehicles
- Deliver More Power Than Standard Camshafts
- 1 Year Limited Warranty
Cadillac; 425; 472; 500; Eldorado; Fleetwood; DeVille; Brouham
High performance street, strong mid-range, best with upgraded exhaust and 2000+ stall. Choppy idle.
Lift .516"/.516"
Duration 270/270
RPM Range 1500-5500
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height6.6
Package Width7.0
Package Length25.3
Weight13.1 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)224
Cam StyleHydraulic flat tappet
Grind Number270H
Exh. Duration Advertised (Deg)270
Locks IncludedNo
Engine Make/SizeCadillac 472-500
Retainers IncludedNo
Intake Valve Lift With Factory Rocker Arm Ratio (I0.516
Int. Duration @ .050 In. (Deg)224
Assembly Lubricant IncludedYes
Basic Operating Rpm Range1,500-5,500
Pushrods IncludedNo
Gaskets IncludedNo
Rocker Arms IncludedNo
Intake Valve Lift0.516 in (13.106 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)270
Lobe Separation (Deg)110
Rpm Range1500-5500
Lifter StyleHydraulic flat tappet
Advertised Duration270 int./270 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.516
Valve Springs IncludedNo
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.516 int./0.516 exh.
QuantitySold as a kit
Valve Stem Seals IncludedNo
Exhaust Valve Lift0.516 in (13.106 mm)
Advertised Intake Duration270
Intake Duration At 050 Inch Lift224
Exhaust Duration At 050 Inch Lift224
Timing Chain And Gears IncludedNo
Advertised Exhaust Duration270
Lifter TypeHydraulic Flat Tappet
Duration At 050 Inch Lift224 int./224 exh.
Valve Springs RequiredYes
Lifters IncludedYes
Vendor Part NumberCL94-306-5
Package Qty1
Package TypeEA
