Vehicle Info NeededCOMP CAMSPART NUMBER: 249-K08-302-8

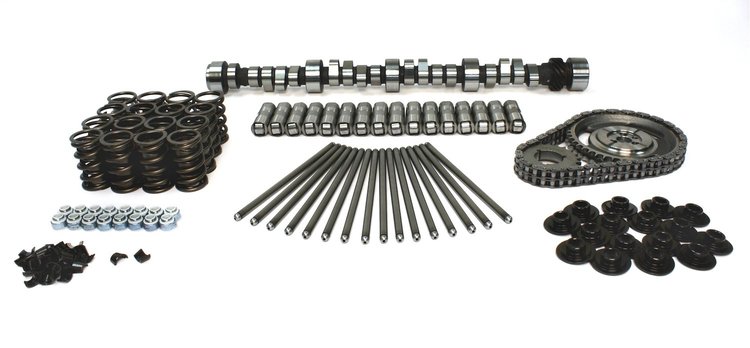

Computer Controlled Hydraulic Roller Tappet Camshaft Complete Kit RPM Range: 1200-5200
$1,27695
Ships on 10/19/2026
Lowest Price Guarantee1987-98 Small Block Chevy 305/350With Factory Roller Cam
- Computer Controlled Hydraulic Roller Tappet Camshaft Complete Kit
- RPM Range: 1200-5200
- Lift: .480"/.480"
- Advertised Duration: 264°/274°
- Lobe Seperation Angle 112°
- Computer Controlled Camshaft
- 1 Year Limited Warranty
265, 283, 307, 302, 305, 327, 350, 383, 400, 427, L46, L48, L65, LM1, LT-1, L82, L81, LS9, L83, L98, L05, LG3, LG4, LT1, LT4, Camaro, Corvette, Chevelle, Stingray, Silverado, C10, Firebird, Chevrolet, Chevy, Small Block Chevy, Caprice, Malibu, Impala, Nova, 355, GEN1, Monte Carlo, S10
Mild performance for TPI. Strong low to mid-range power. Requires custom tuning.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height5.1
Package Width10.2
Package Length25.2
Weight23.6 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)220
Cam StyleHydraulic roller tappet
Grind NumberCS 264H-R12
Exh. Duration Advertised (Deg)274
Locks IncludedYes
Engine Make/SizeChevy Small Block (262-400)
Retainers IncludedYes
Intake Valve Lift With Factory Rocker Arm Ratio (I0.48
Int. Duration @ .050 In. (Deg)210
Assembly Lubricant IncludedNo
Basic Operating Rpm Range1,200-5,200
Pushrods IncludedNo
Gaskets IncludedNo
Rocker Arms IncludedNo
Intake Valve Lift0.48 in (12.192 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)264
Lobe Separation (Deg)112
Rpm Range1200-5200
Lifter StyleHydraulic roller
Advertised Duration264 int./274 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.48
Valve Springs IncludedYes
UsageOEM
Valve Lift With Factory Rocker Arm Ratio0.480 int./0.480 exh.
QuantitySold as a kit
Valve Stem Seals IncludedYes
Exhaust Valve Lift0.48 in (12.192 mm)
Advertised Intake Duration264
Outside Diameter Of Outer Spring1.25 in (31.8 mm)
Intake Duration At 050 Inch Lift210
Exhaust Duration At 050 Inch Lift220
Timing Chain StyleDouble non-roller
Timing Chain And Gears IncludedYes
Advertised Exhaust Duration274
Lifter TypeHydraulic Roller
Duration At 050 Inch Lift210 int./220 exh.
Valve Springs RequiredNo
Lifters IncludedYes
Vendor Part NumberK08-302-8
Package Qty1
Package TypeEA
